Chapter 2 - Installation GPS Installation
BreezeMAX Extreme 40 System Manual
4 Use the supplied metal bands to assemble the bracket on a pole.
5 Fix the cable onto the pole using plastic strips.
1 Place the bracket on a flat surface and thread the GPS antenna through the
3/4" hole of the bracket. Hand-tighten the fastening nut.
2 Assemble the lightning arrestor on the bracket, with the screws facing the
bracket.
3 Connect one end of the 0.5 m cable to the lightning arrestor and the other end
to the GPS antenna.

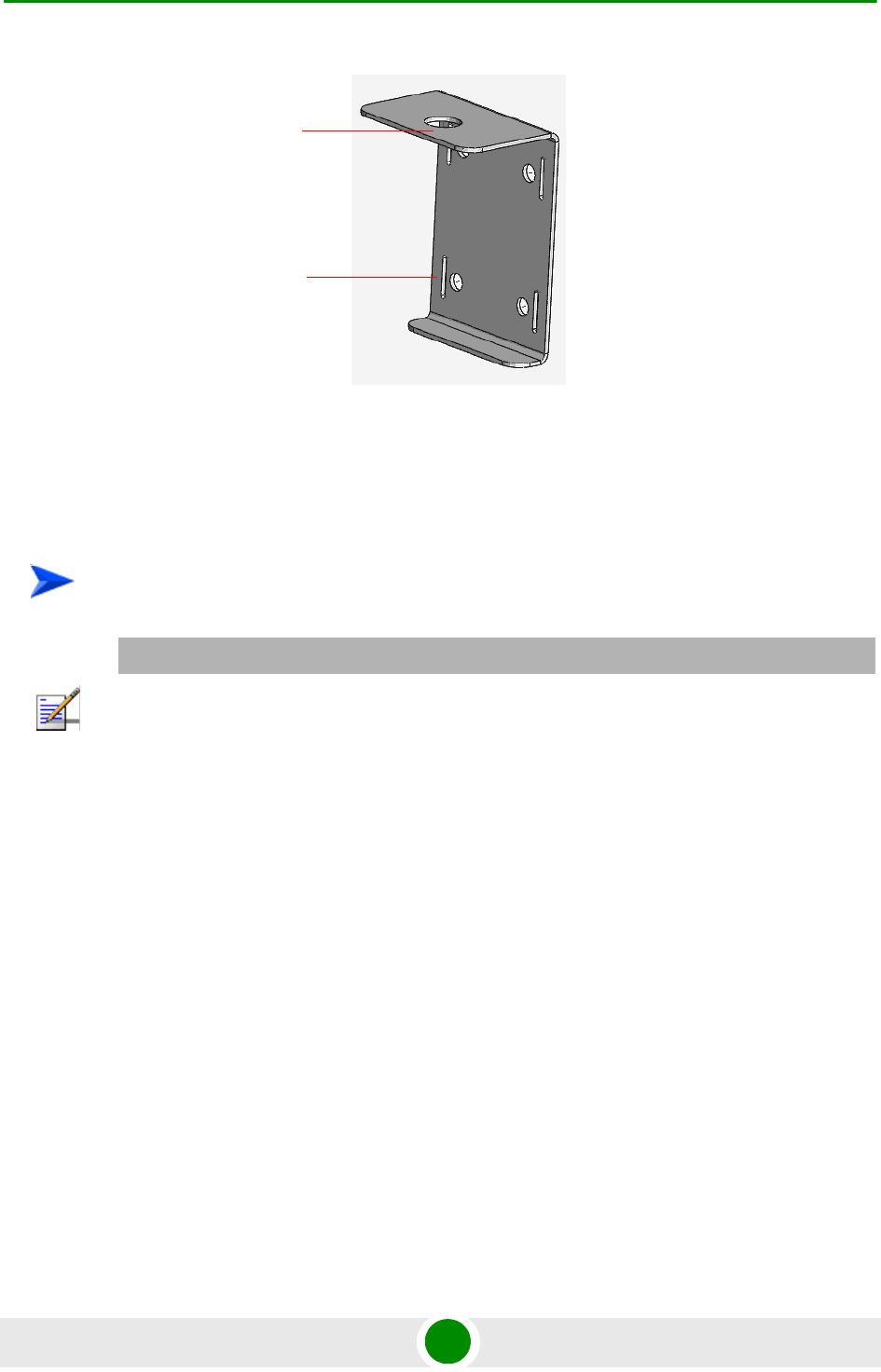

Figure 2-11: Bracket for Basic GPS
To install the high-gain GPS antenna:
NOTE
Do not over-tighten or use a tool for tightening the cables, to avoid stripping the connectors.
Hole for GPS
antenna
Holes for
metal bands
