Chapter 2 - Installation BTS Installation
BreezeMAX Extreme 36 System Manual
3 If required, slightly release the tilt bracket screws to enable rotation, and the
tilt control screws to enable tilting; Adjust the BTS position and tighten the
screws.
2.1.6 Wall Mount Installation
The BreezeMAX Extreme BTS can be installed on walls or any flat surface. This
requires attaching and fastening the carriage with the BTS to the wall using
suitable securing means (not supplied) and then tilting and rotating the BTS as
required. The location of the screws should be planned with maximum precision.
1 Assemble the tilt bracket on the BTS and fasten its four screws (see
“Assembling the Tilt Bracket on the BTS” on page 29).
2 If you use a High-Gain GPS antenna with a cable longer than 3m, install a
lightning arrestor on the carriage as described in “Installing a Lightning
Arrestor for the High-Gain GPS Antenna” on page 31.

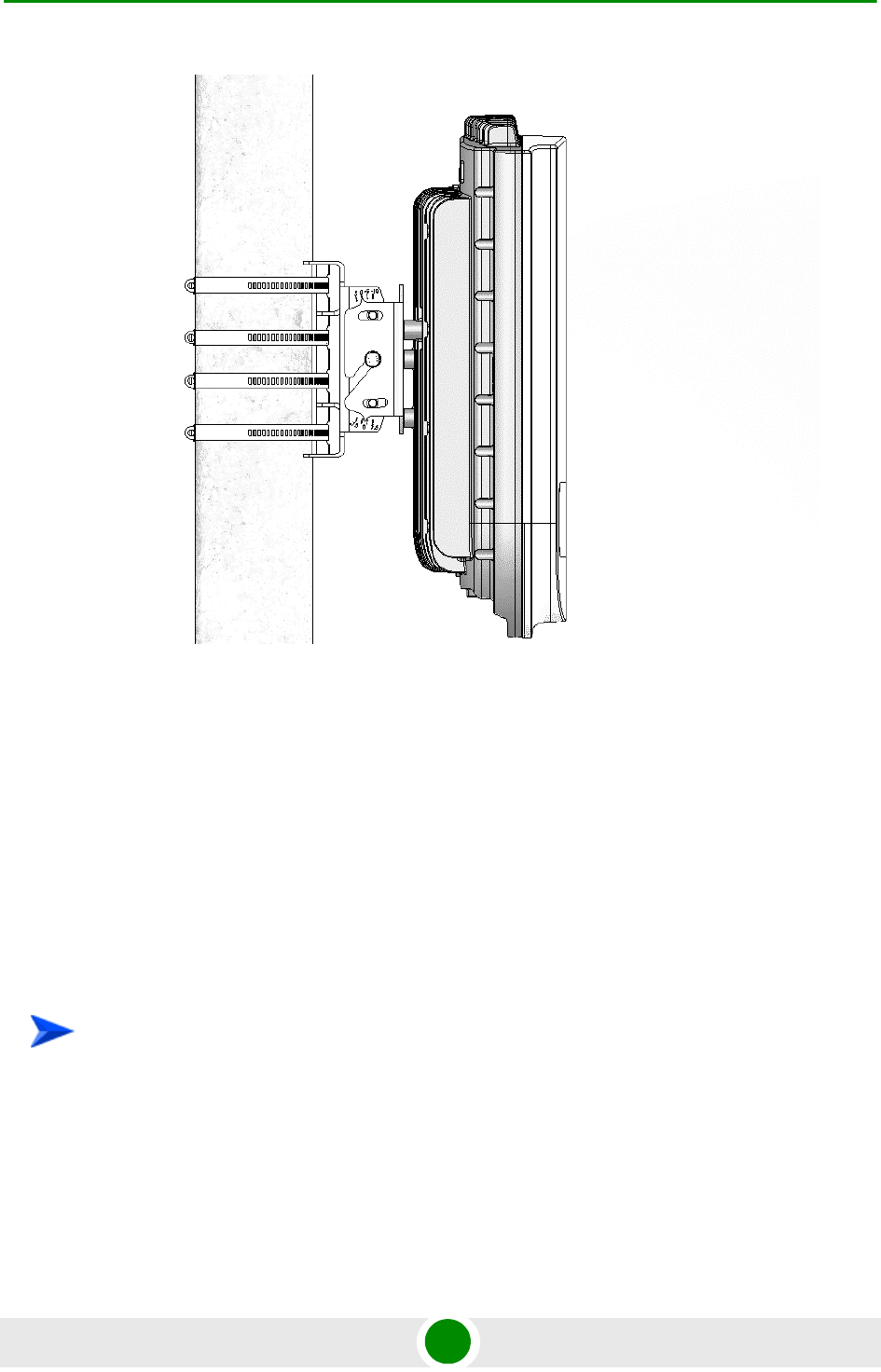

Figure 2-9: BTS Mounted on a Pole Larger than 4'' (with Metal Bands)
To install the BTS on a wall:
