User Manual

Temporary or
Remote Site
Ethernet Hub
WB-10D
PC
PC
AP-10D
Internet
Router
ISP POP
T1 Lease Lines
WB-10D
Main Site Remote SiteRemote Site
SA-40D
AP-10D
Printer
Server

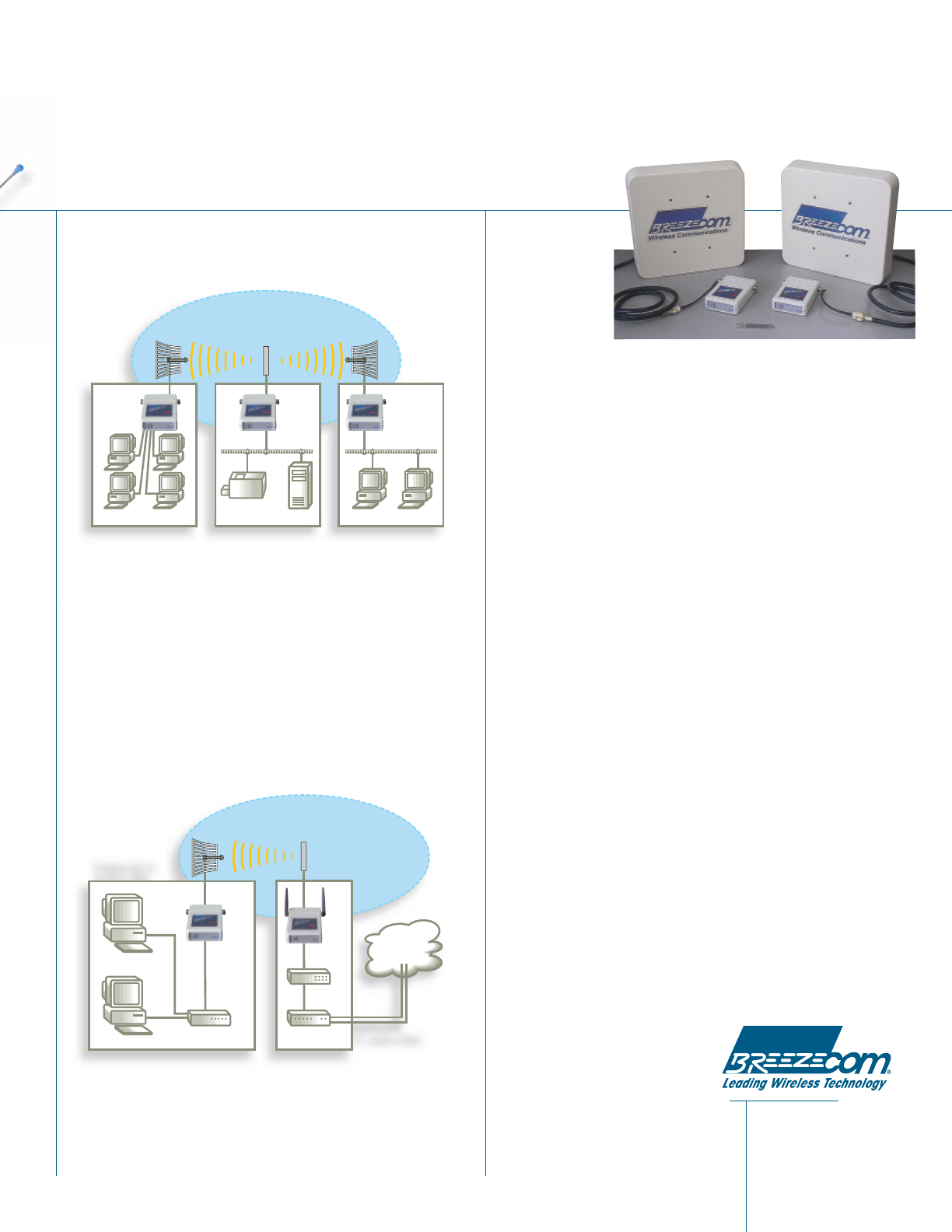

BreezeNET PRO.11
Building-to-Building Products
The BreezeNET PRO.11 “D” Model Bridge with detachable diversity antenna
system provides wireless links between networks or devices up to eight
miles apart. Coupled with a complete family of omni- and uni-directional
high-gain antennas, network managers can set up connections between
remote network sites outdoors and indoors in large open areas, including
headquarters, remote buildings, convention halls, hangars, and warehouses.
With a data rate up to 3 megabits per second, the D Model provides a
reliable frequency hopping, spread spectrum connection that does not
sacrifice performance. It is also extremely cost-effective, especially
compared with cost of leased lines and underground cabling.
Typical D Model applications include ISP Internet connections to
customer sites, network connections between schools and remote
classrooms, and quick deployment of networks for special events.
All D Models come with mounting bracket and power supply.
AP-10D PRO.11
Base Station
Bridge
Based on the AP-10
PRO.11 in-building
Access Point, the AP-10D PRO.11 is the central unit for creating a point-to-
point, or multi-point link using D Model bridges.
SA-PCD PRO.11 PC Card
with Detached Antenna System
The SA-PCD PRO.11 allows laptops and other specialized computing devices
to be connected to the network using high gain, detachable antennas. Typical
applications include vehicular networks such as fleets and automated cranes,
robot control systems with built in PCMCIA slots, and outdoor networks
which use laptops and may require longer transmission ranges.
SA-10D PRO.11 Single Station Bridge
Connects a single Ethernet device back to the AP-10D PRO.11 Base Station
Bridge. It handles a single hardware address and can connect a single Unix
workstation, PC, Mac, or peripheral.
SA-40D PRO.11 Four Station Bridge
Connects four Ethernet devices back to the AP-10D PRO.11 Base Station
Bridge. It handles up to four hardware addresses and can connect up to
four workstations or peripherals.
WB-10D PRO.11 Workgroup Bridge
Connects a remote Ethernet network to an AP-10D multipoint base station
site or to another point-to-point remote site. It handles up to 256 hardware
addresses and includes cache RAM to handle high volume network traffic.
For more information about
BreezeCOM’s full line of
BreezeNET PRO.11 detachable,
high gain antennas, see the
BreezeNET PRO Antenna Catalog.
