4.1.6 The Counters Tab

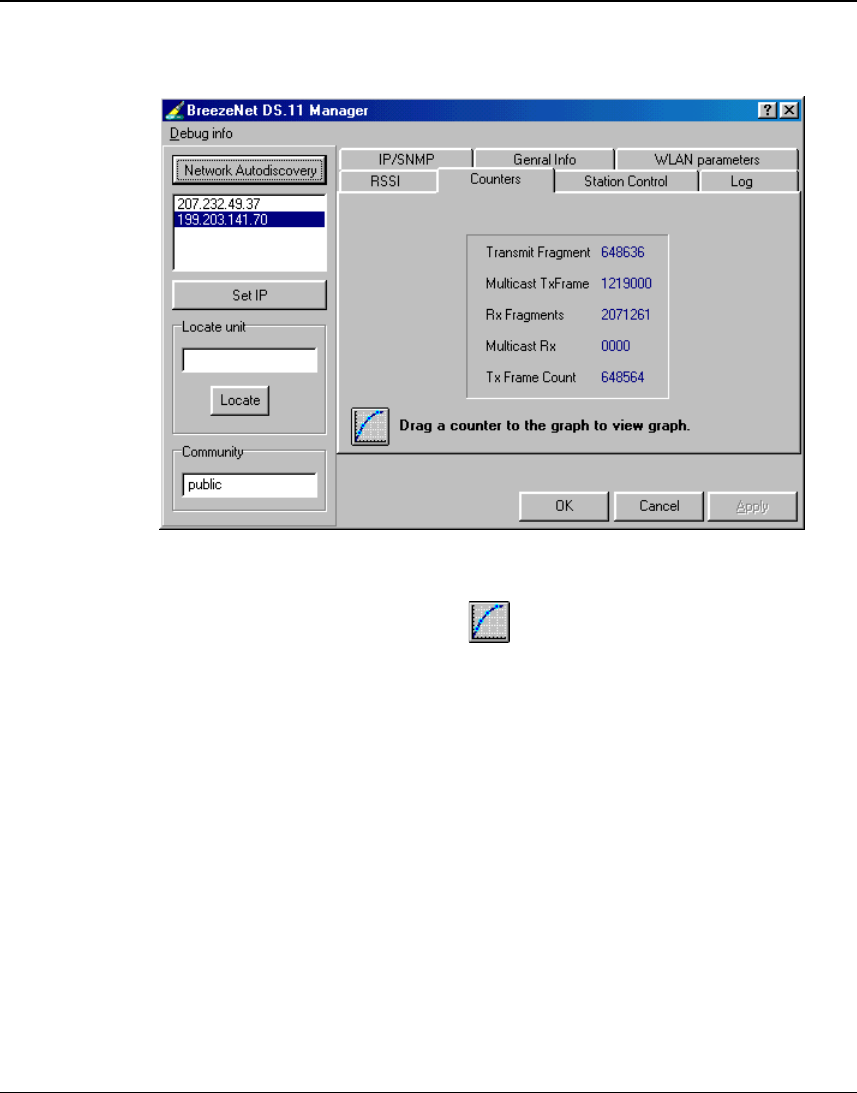

Figure 4-6. Counters Tab
Select a counter and drag it to the graph icon to view the graph.
•
Transmit Fragment - The total number of transmitted frames. The count
includes data, control and management frames and also the number of
retransmissions of data frames (for example, if the same data frame is
retransmitted ten times then the count will increase ten times). In a point-to-
point application, this counter should relatively correspond to the number of
bad fragments received on the other side.
•
Tx Frame Count - The number of frames transmitted to the wireless media.
The count includes the first transmission of data frames (without
retransmissions), and also the number of control and management frames.
•
Rx Fragments - The total number of frames received, including data, control,
and duplicate data frames.
•
Multicast Rx -
•
Multicast Tx -
