Installation Instructions Owner manual

Vertiline16C - 3 -
9. Upon completion of wiring, set illuminated master power disconnect circuit breaker to the
ON (RESET) position (F
ig. 3, pg. 6).
10. The power LEDs (Green) on the faceplate for Outputs 1-16 will illuminate when AC power is present
(F
ig. 1a, pg. 4). If any of these LEDs are off, a loss of AC power output may be due to a blown fuse or a tripped
PTC caused by a short circuit or overload condition. If all of the LEDs are OFF there may be a complete loss of
supply power to the Vertiline unit or the illuminated master power disconnect circuit breaker is in the OFF position
or the main fuse 1-8 or 9-16 is blown (Fig. 1c, pg. 4).*
To restore the power output for Vertiline16C or Vertiline166C:
1- Switch corresponding output voltage switch to the OFF position (Fig. 1b, pg. 4).
2-
Eliminate the trouble condition.
3- Replace the corresponding automotive blade fuse.*
4- Switch output voltage switch to the 24VAC or 28VAC position as desired (Fig. 1b, pg. 4).
To restore the power output for Vertiline16CD or Vertiline166CD:
1- Switch corresponding output voltage switch to the OFF position (Fig. 1b, pg. 4).
2-
Eliminate the trouble condition.
3- Allow 1 minute for PTC to cool off.
4- Switch output voltage switch to the 24VAC or 28VAC position as desired (Fig. 1b, pg. 4).
*Note: Replace fuses with same type and rating:
Output fuses are rated @ 3 amp for all models.
Main fuse ratings:
10 amp for
Vertiline16C and Vertiline16CD.
15 amp for Vertiline166C and Vertiline166CD.

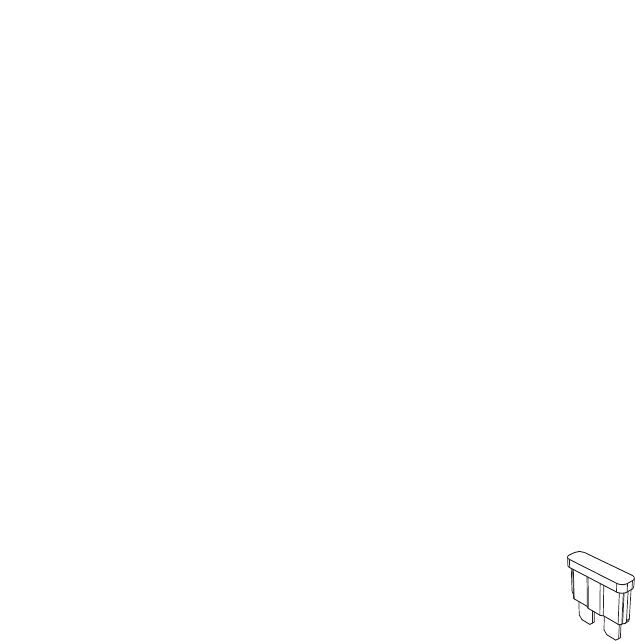

Automotive
Blade Fuse
