Installation Instructions

Terminal Identification:
Terminal Legend Function/Description
AC/AC Low voltage AC input (24VAC or 28VAC / 175VA).
+ DC --- 12VDC / 24VDC @ 6 amp continuous output.
ACFAIL
NC, C, NO
Used to notify loss of AC power, (e.g. connect to audible device or alarm panel).
Relay normally energized when AC power is present. Contact rating 1 amp @ 28VDC.
Low Battery
NC, C, NO
Used to indicate low battery condition, (e.g. connect to alarm panel). Relay normally energized
when DC power is present. Contact rating 1 amp @ 28VDC
+ BAT --- Stand-bybatteryconnections.Maximumchargerate0.7amp.
+ DC ---
AC AC
+ BAT -- -
OPEN = 24V SW1 CLOSED = 12V
DC
AC
RL2
RL3
RLY1
AC TROUBLE DELAY OPTION
AC FAIL
NC C NO
BAT FAIL
NC C NO
Altronixisnotresponsibleforanytypographicalerrors.Productspecificationsaresubjecttochangewithoutnotice.
14058thStreet,Brooklyn,NewYork11220USA,718-567-8181,fax:718-567-9056
website:www.altronix.com,e-mail:[e-mail],LifetimeWarranty,MadeinU.S.A.
IISMP7PM     B09L
MEMBER
+ DC ---
AC AC
+ BAT ---
OPEN = 24V SW1 CLOSED = 12V
DC
AC
RL2
RL3
RLY1
AC TROUBLE DELAY OPTION
AC FAIL
NC C NO
BAT FAIL
NC C NO

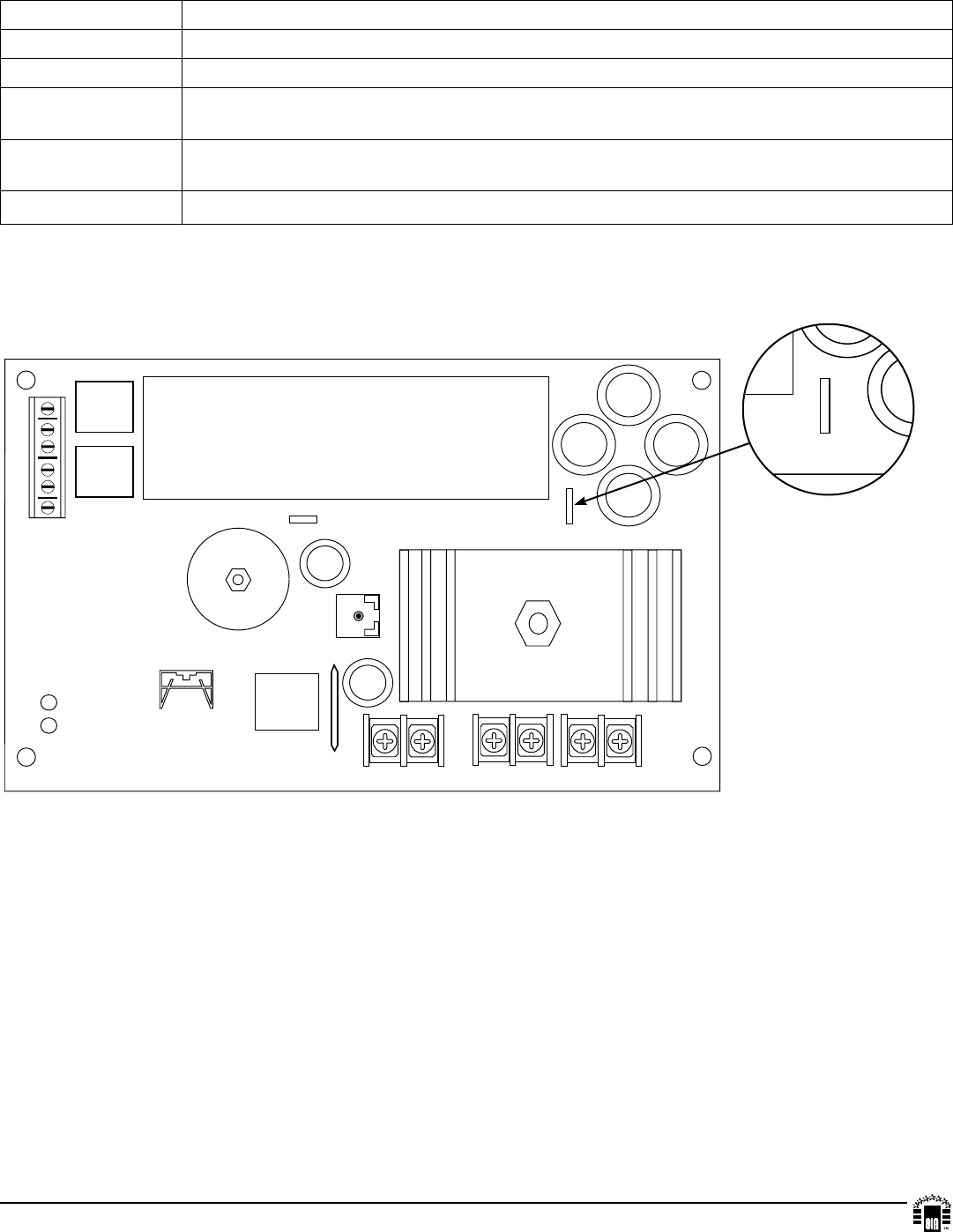

Fig. 1
Fig. 1a
