Installation Instructions Owner's manual

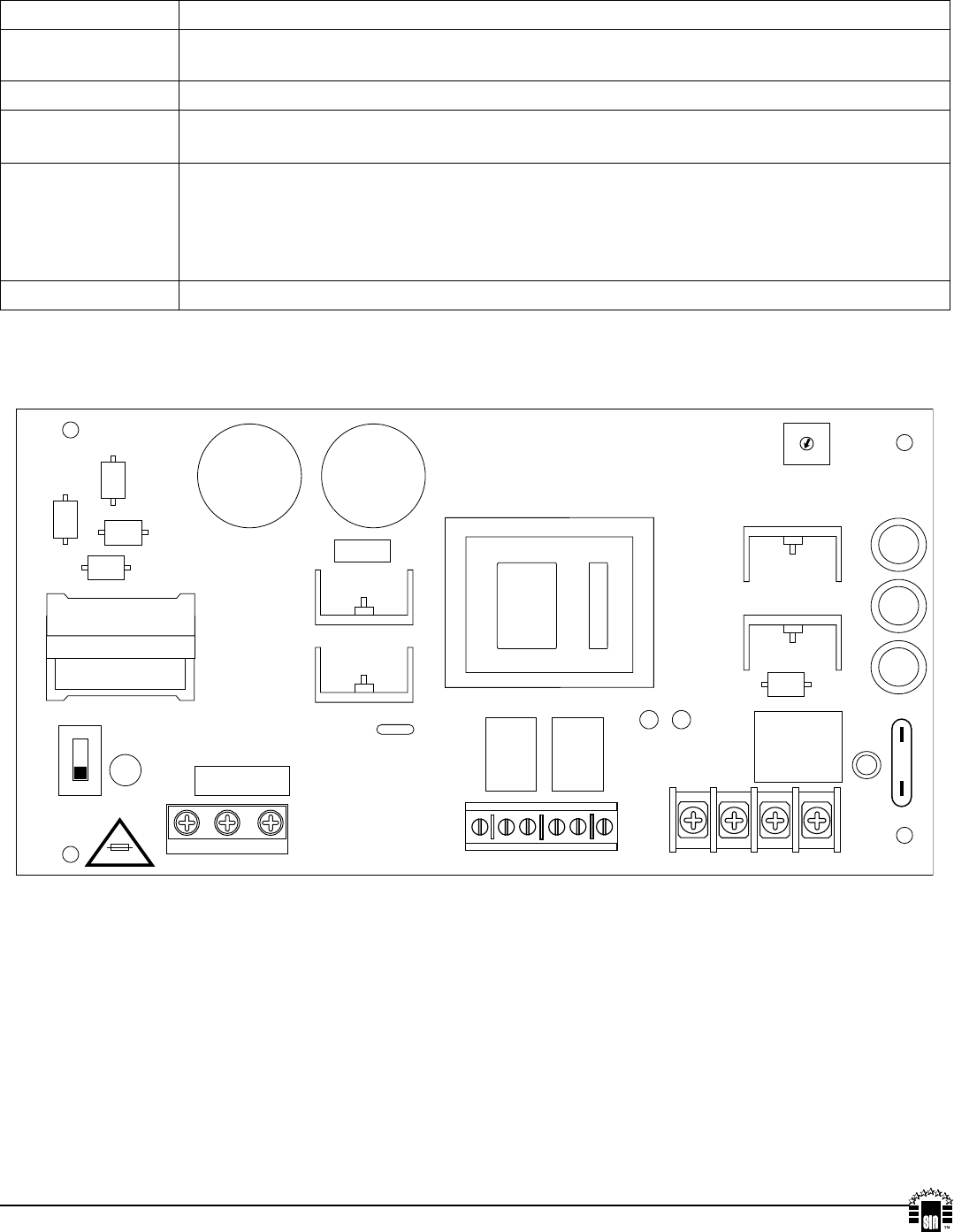

Terminal Identification:
Terminal Legend Function/Description
L, G, N Connect 115VAC to these terminals:
L to Hot, N to Neutral, G to ground.
– DC + 12VDC @ 10 amp continuous supply current.
ACFAIL
NC, C, NO
Used to notify loss of AC power, e.g. connect to audible device or alarm panel. Relay normally
energized when AC power is present. Contact rating 1 amp @ 28VDC.
Low Battery
NC, C, NO
Used to indicate low battery condition, e.g. connect to alarm panel.
Relay normally energized when DC power is present.
Contact rating 1 amp @ 28VDC
Low battery threshold:
12VDCoutputthresholdset@approximately10.5VDC.
– BAT + Stand-bybatteryconnections.Maximumchargerate0.7amp.
LG N
OFF ON
LOW BAT
NC C NO NC C NO
AC FAIL
--- BAT + --- DC +
AC DC
5A 250V
15A
