Installation Instructions User Manual

eBridge16CR - 3 -
2. Unit should be located in proximity to ethernet switch/network, NVR or video server.
3. Connect UL Listed 24VAC Class 2 plug-in transformer or 24VDC/56VDC (polarity not observed) UL Listed
Class 2 power supply to jack marked [Power Input] using two pin plug in connector (supplied) (Fig. 1, pg. 2).
 Use22AWG-16AWGwireforthisconnection.
4. Connectstructuredcablefromethernetswitch/NVR(networkvideoserver)toRJ45jackmarked[10/100BaseT]
(Fig. 1, pg. 2).
5. Connect Coax cable to BNC connector marked [Data In] (Fig. 1, pg. 2).
6. For optional simultaneous Composite Video transmission, connect Coax cable to BNC connector marked
[Composite Video Out] (Fig. 2, pg. 3). Connect the other end of the Coax cable to the composite video input of the
NVR, monitor display, matrix switch or other headend equipment.
Note:TheeBridgeisdesignedtoaccommodateMegapixel,HD720,HD1080andVGA(SD)cameras.Itisimportant
to note that some high resolution and high frame rate cameras may demand faster headend processing ability, such as a
PC graphics card to present a quality image. If the headend processing equipment is insufficient in speed, the image may
show pixilation and latency. It is advisable to pretest system if unsure. Alternatively, frame rate and resolution may be
reduced to accommodate system equipment.
Technical Specifications:
Parameter Description
Connections BNCforCoaxlink.RJ45forethernetlink.
Composite video connector for optional composite video service
Input power requirements 24VDC/1500mA, 56VDC/700mA, 24VAC/2000mA.
Indicators Blue:CoaxLink.
Yellow(RJ45connector):On-Link,Off-NoLink,Blinking-Activity.
Green(RJ45connector):On-100Base-TX,Off-10Base-T.
Green:Power.
Environmental
Conditions
OperatingAmbientTemperature: UL60950-114ºFto122ºF(-10ºCto50ºC).
Relativehumidity:85%,+/---5%
StorageTemperature:---4ºto158ºF(---20ºto70ºC)Storage
OperatingAltitude:--- 1000 to 6,561.679 ft. (--- 304.8 to 2000m).
Regulatory Compliance UL/CUL Listed for Information Technology Equipment (UL 60950-1). CE approved.
Weights (approx.) Product:7.2lbs.(3.27 kg.), Shipping:9.2lbs.(4.17 kg.)

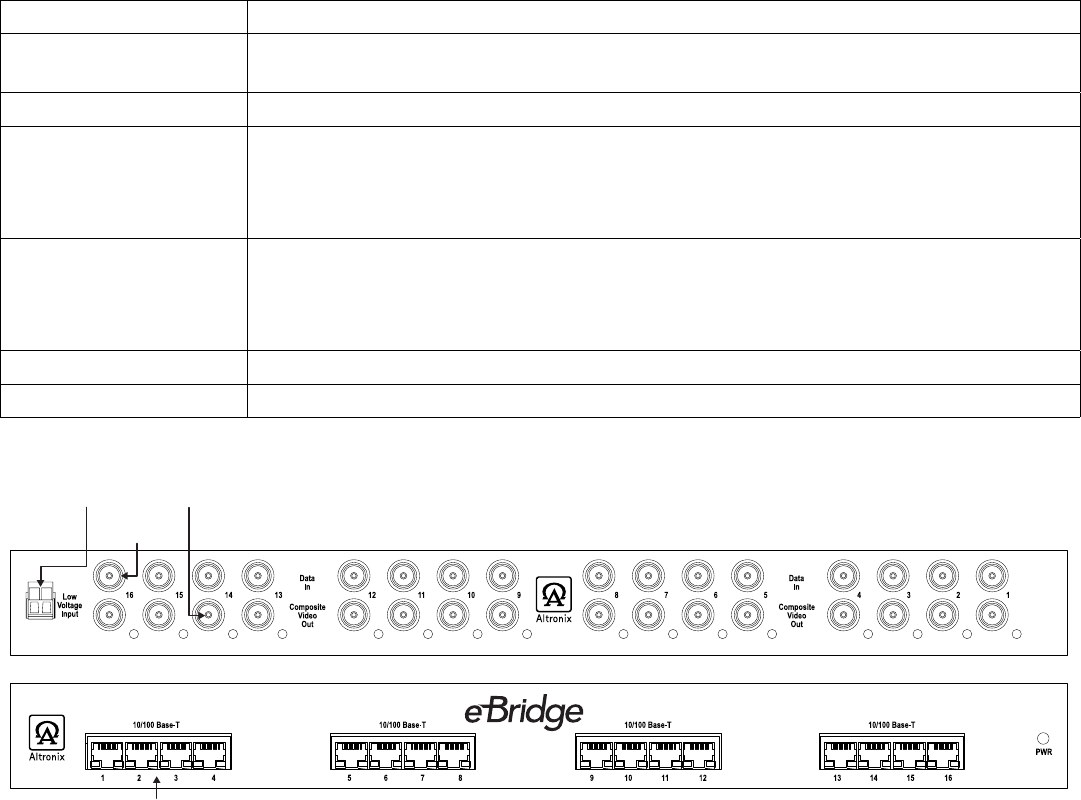

Fig. 1
Structured Cable from
Ethernet Switch/NVR
24VDC/1500mA,
56VDC/700mA,
24VAC/2200mA
Back of Unit
Front of Unit
Coax Cable from
eBridge1CT or
Hybrid Camera/Device
Optional Composite
Video Connector
to Monitor
