ALTV2416ULX3 provides 24VAC or 28VAC distributed via Sixteen (16) fuse pro-

tected outputs for powering CCTV Cameras, heaters and other video accessories.

Factory installed 3-wire line cord.

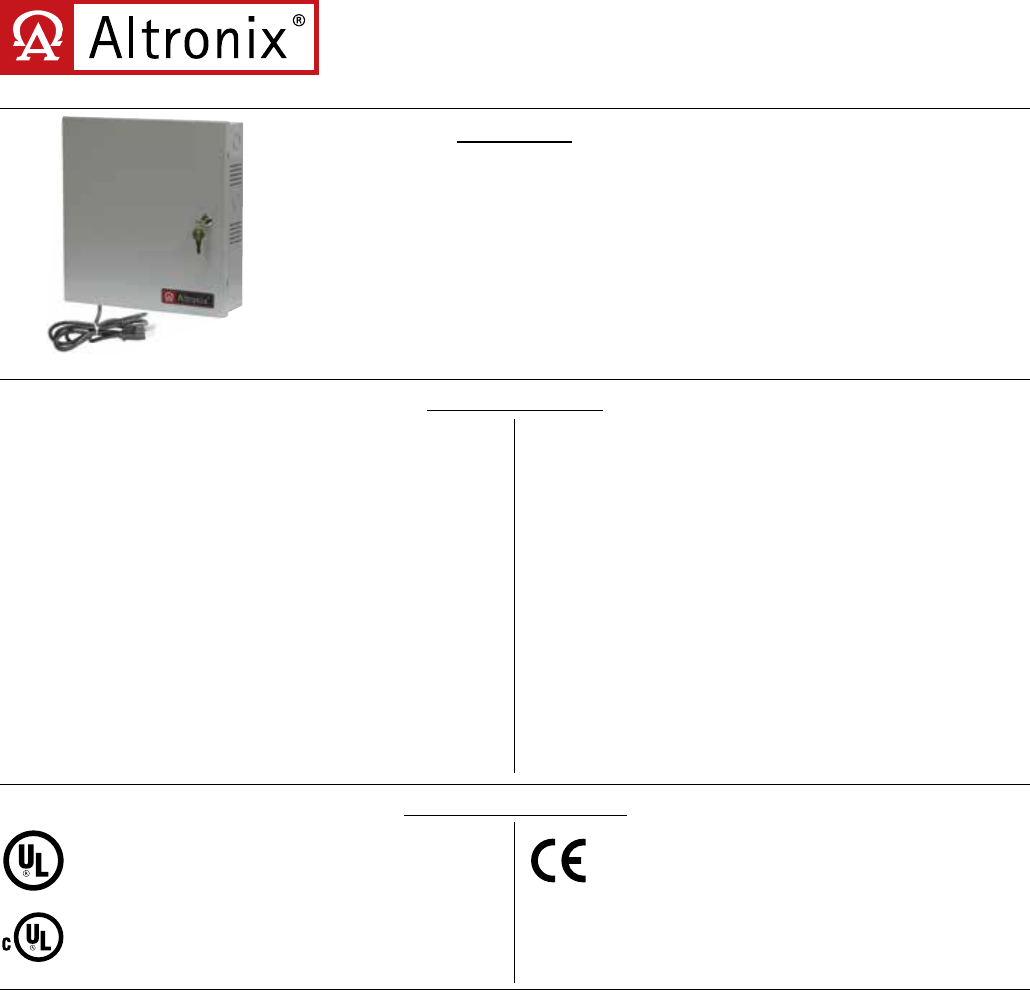

ALTV2416ULX3

AC CCTV Power Supply

Rev. DSALTV2416ULX3_10242012

Overview

ALTV2416ULX3

Specifications

Input:

• 115VAC,50/60Hz,1.8amp.

Output:

• Sixteen (16) fuse protected outputs.

• 24VAC@7amp(170VA)supplycurrent

(0.438 amp per device, 3.5 amp max.)

 or28VAC@6amp(170VA)supplycurrent

(0.375 amp per device, 3.5 amp max.).

• Outputsarerated@3.5amp.

• Surgesuppression.

Electrical:

• Operatingtemperature:0ºCto49ºCambient.

• BTU/Hr.:85.99BTU/Hr.

• SystemACinputVArequirement:207VA.

Features:

• Secondaryfuserated@5amp/250V.

• ACpowerLED.

• PowerON/OFFswitch.

• Spare fuses provided.

 (allmodelsw/primaryand/orsecondaryfuses).

• Factoryinstalled3-wirelinecord.

Mechanical:

• EnclosureDimensions(HxWxDapprox.):

 13.5”(343mm)x13”(330mm)x3.25”(83mm)

• Productweight(approx.):12.6Lbs(5.715kg).

• Shippingweight(approx.):13.6Lbs(6.168kg).

ULListedforCommercialCCTVEquipment

(UL 2044).

CULListed-CSAStandardC22.2No.1-98,

Audio,VideoandSimilarEquipment.

Agency Approvals

EuropeanConformity

PAGE 1
ALTV2416ULX3 AC CCTV Power Supply Rev. DSALTV2416ULX3_10242012 Overview ALTV2416ULX3 provides 24VAC or 28VAC distributed via Sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord. ALTV2416ULX3 Specifications Features: Input: • 115VAC, 50/60Hz, 1.8 amp. Output: • Sixteen (16) fuse protected outputs. • 24VAC @ 7 amp (170VA) supply current (0.438 amp per device, 3.5 amp max.) or 28VAC @ 6 amp (170VA) supply current (0.
PAGE 2
Enclosure Dimensions 13.5” (343mm) x 13” (330mm) x 3.25” (83mm) 1.40” (36mm) 4.85” (123mm) 4.85” (123mm) 1.40” (36mm) 1.20” (31mm) 3.25” (83mm) 1.20” (31mm) 0.75” (19mm) 12.5” (318mm) 11.0” (279mm) 1.20” (31mm) 0.75” (19mm) 0.9375” (24mm) 1.40” (36mm) 1.40” (36mm) 5.10” (130mm) 5.10” (130mm) 13.0” (330mm) 5.10” (130mm) 6.5625” (167mm) 0.9375” (24mm) 3.25” (83mm) 3.25” (83mm) 3.25” (83mm) 1.0” (25mm) 1.0” (25mm) 1.0” (25mm) 10.5” (267mm) Altronix Corp.
