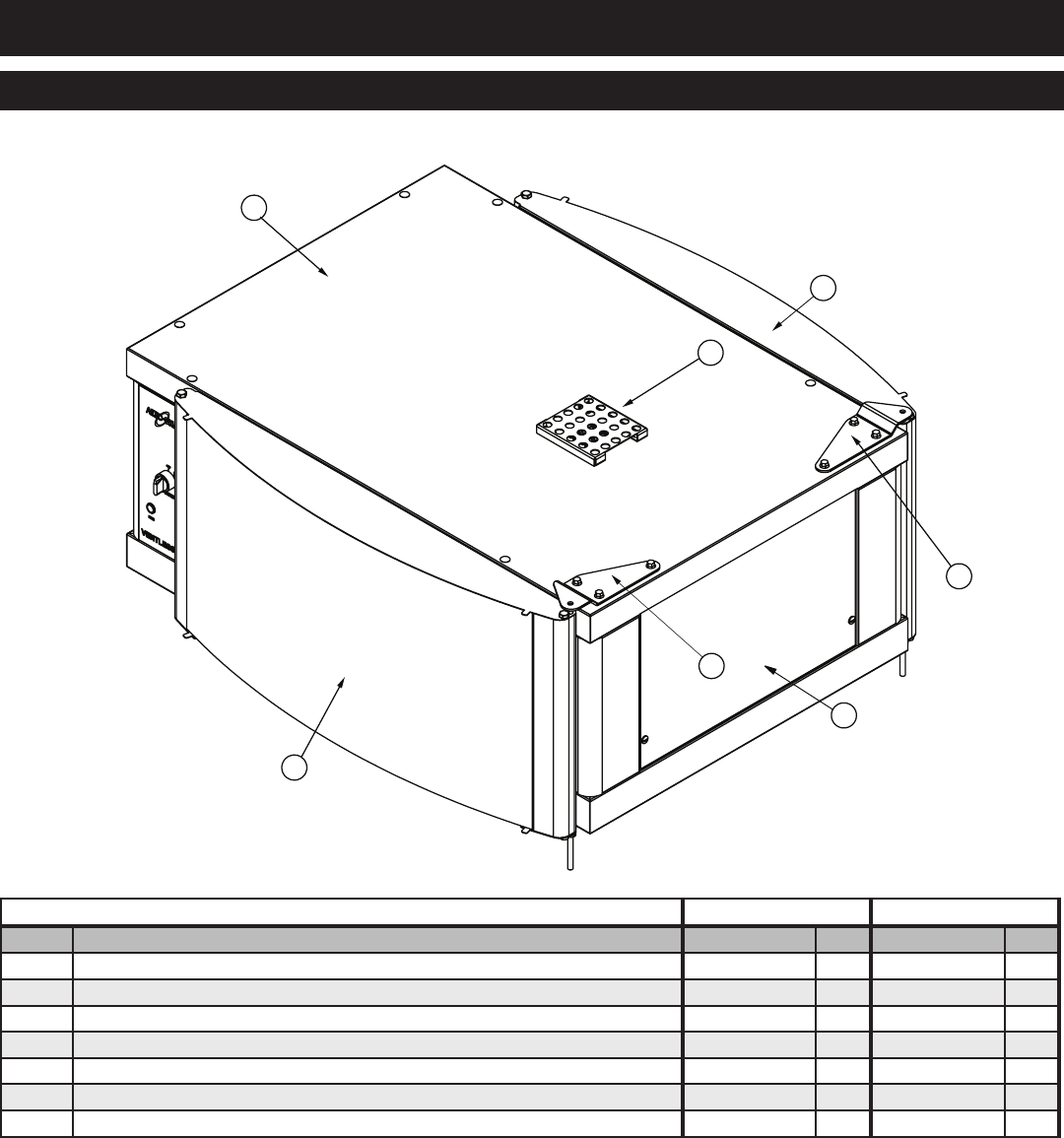

F U L L A S S E M B LY ( R I G H T H A N D , C U R V E D D O O R , PA S S T H R O U G H S H O W N )
AR-7E Rotisserie with AR-7VH Ven t l e s s H o o d O p e r a t i on & C a r e M anual • 40
V E N T L E S S H O O D - S E R V I C E
1
2
3
4
5
7
6
MO DEL > CU RVE D DO O R FL AT DO O R
IT EM DE SCR IPT IO N PA RT N O. Q TY PA RT N O. Q TY
1 HOUSING, DEFLECTOR, EXHAUST 1010387 1 1010387 1
2 DOOR ASSEMBLY, NON-CONTROL SIDE 5009542 1 5009805 1
3 HINGE, DOOR, REAR 1007758 1 1007758 1
4 COVER, SIDE 1007843 2 1007843 2
5 HINGE, DOOR, FRONT 1007756 1 1007756 1
6 DOOR ASSEMBLY, CONTROL SIDE 5007184 1 5007184 1
7 COVER, TOP 1007841 1 1007841 1
