7 AIRSPACE, TRAFFIC AND TEAM FLYING

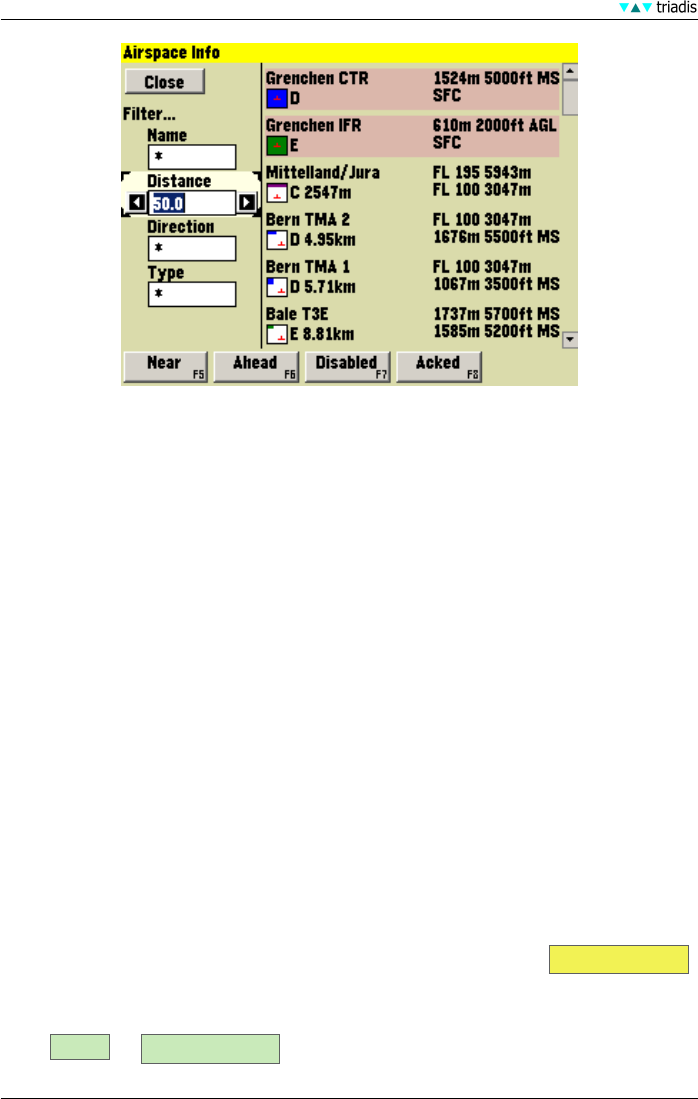

The airspaces can be filtered by Name, Distance, Heading and Type (class or status). Four buttons
have specific filter functions:
• Near Sets the distance on 25km. Pressing the button another time sets it on 50, 75 and 100km.
All airspaces within this distance are shown.
• Ahead Sets the field ‘Direction’ to HDG(360
◦
). All airspaces within a certain angle (30
◦
) on both
sides of the aircrafts heading direction are displayed.
• Disabled Sets the type to ‘Disabled’. All disabled airspaces are shown.
• Acked Sets the type to ‘Acknowledged’. All acknowledged airspaces are shown.
→ Filter combinations are possible
7.7 Airspace Browser dialog
Display and warning settings of airspaces or airspace classes can be set in Airspace Browser .
It can be accessed over the following menu:
CONF Settings Airspace
69 XCSoar Manual (Altair version) • XCSoar-A-EN
