11 CONFIGURATION
11.4 Terrain display

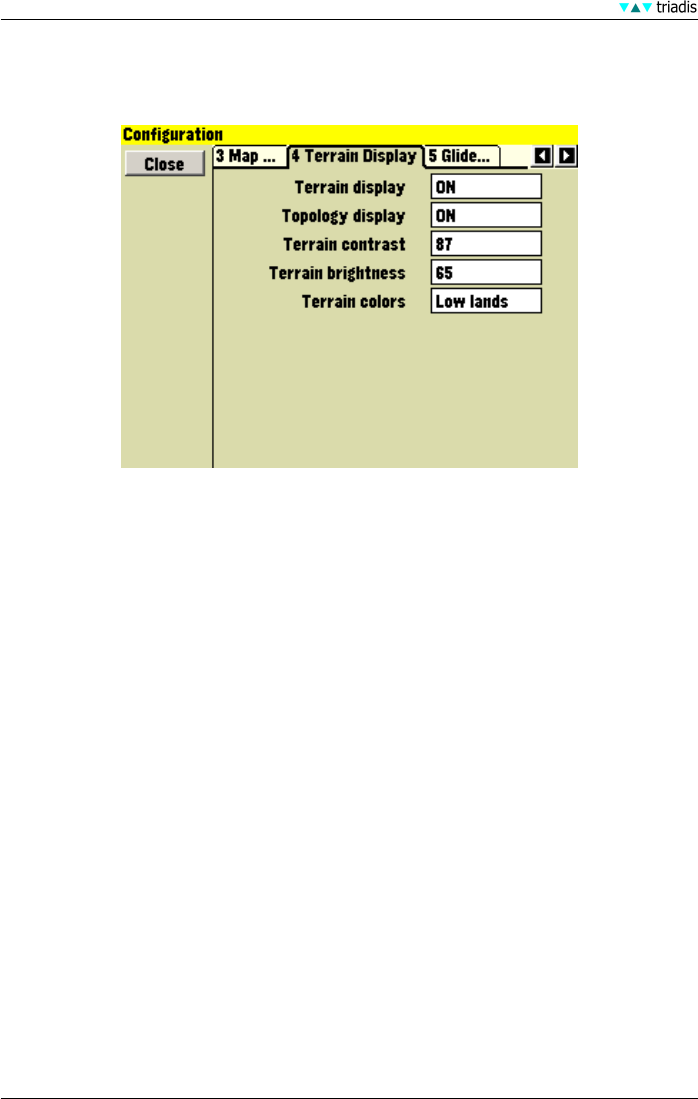

This page sets how terrain and topology is drawn on the map window.
• Terrain display Draws digital elevation terrain on the map
• Topology display Draws topological features (roads, rivers, lakes) on the map
• Terrain contrast Defines the amount of phong shading in the terrain rendering. Use large values
to emphasise terrain slope, smaller values if flying in steep mountains.
• Terrain brightness Defines the brightness (whiteness) of the terrain rendering. This controls
the average illumination of the terrain.
• Terrain colors Defines the color ramp used in terrain rendering. Various schemes are available,
which works best for you will depend on how mountainous your region is. The available
terrain color schemes are illustrated in the table below.
