3.8 Replacing the black mark sensor assembly
1. Refer to section 3.2 to section 3.5 to remove key control board, Bluetooth control board
(option), the media holder assembly, and main board assembly.
2. Remove a screw and replace the black mark sensor.
3. Reassemble the parts in the reverse procedures.

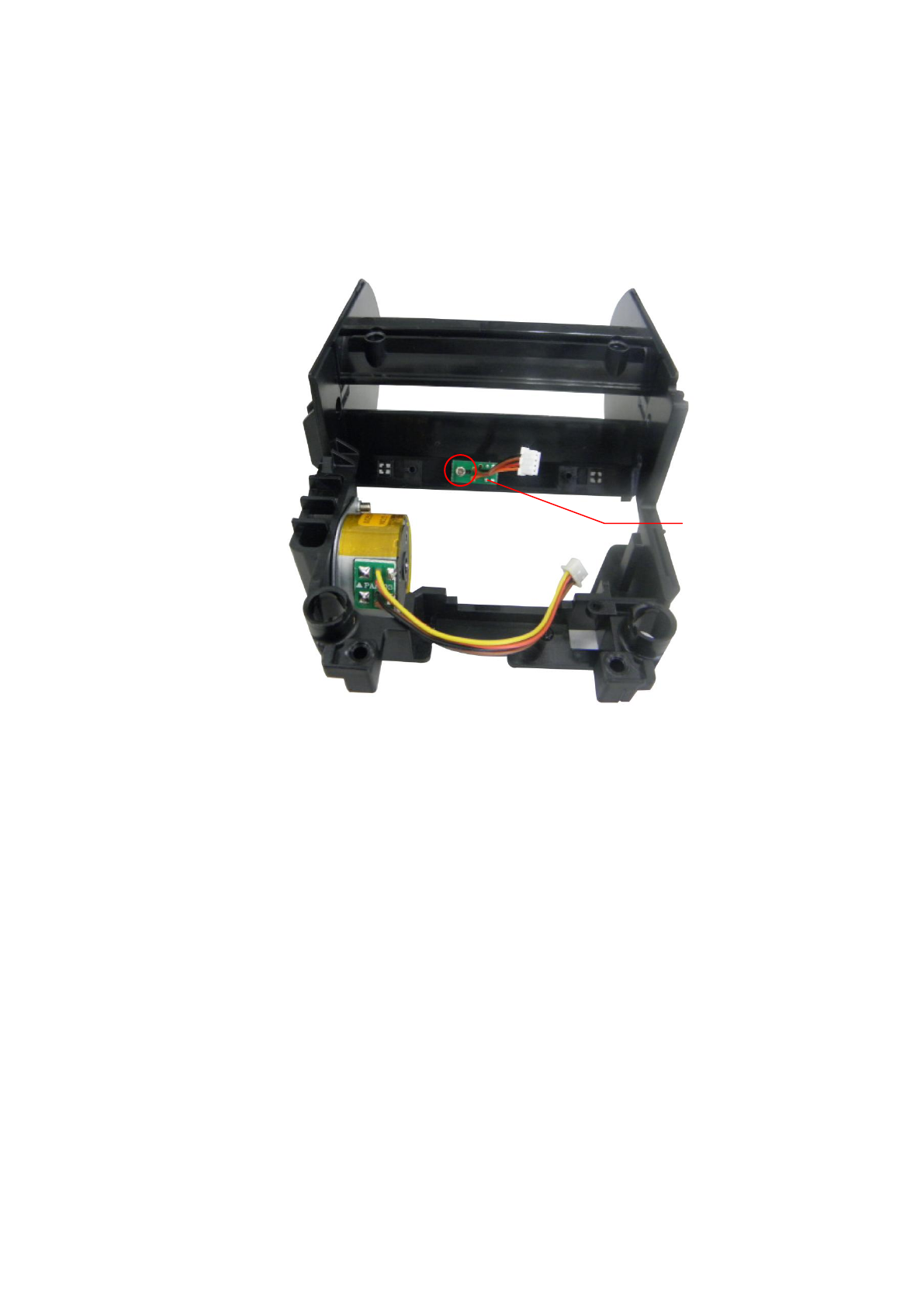

Black mark sensor
assembly
