Step<3>:

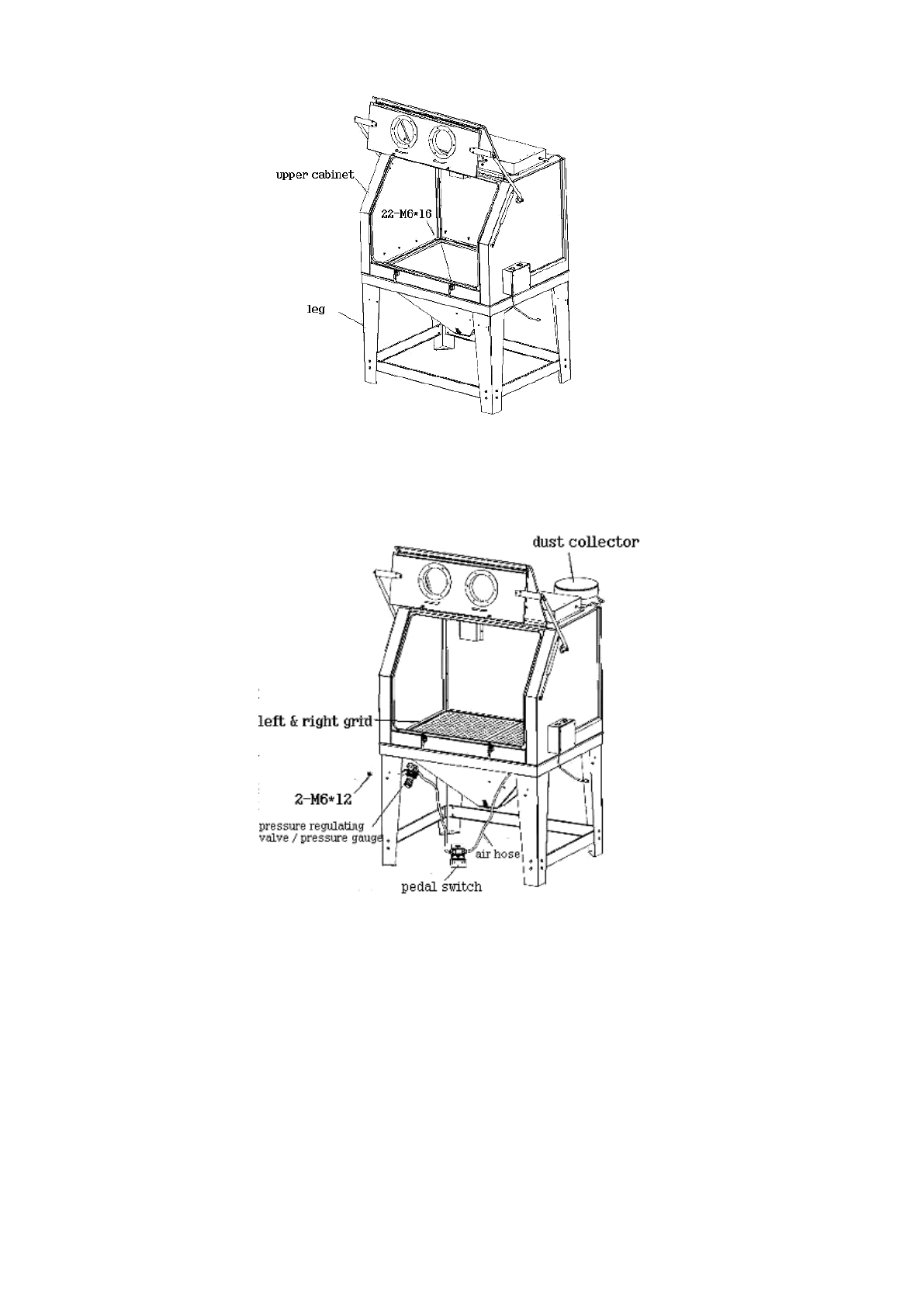

1. Place the upper cabinet on the assembly Step<2> as shown in figure.
2.Opening the double folded door, assemble the upper cabinet, large funnel & bracket using 22pcs
M6*16 round head screws and faced washers.
Step<4>:
1. Taking 4pcs M6*12 large head screws, & M6 flange nuts to mount the dust collector to the back panel.
Plug in assembled dust collector plug into the socket of switch box through the channel on the right side
of cabinet.
2. Mount pressure regulating valve left front leg. Connect the orange air hose of foot valve, then connect
it to the blast gun.
3. Place the left / right grid in the upper cabinet.
4. Move the abrasive blast cabinet to the final position by forklift, then remove the front reinforcement
bracket.
