Mako Technical Manual V3.0.0
76
Appendix
Sensor position accuracy of Mako cameras
Method of positioning
Optical alignment of the photo sensitive sensor area into the camera front mod-
ule (lens mount front flange).
Reference points
Sensor: center of the pixel area (photo sensitive cells).
Camera: Center of the camera front flange (outer case edges).
Accuracy
x/y: ±150 µm (sensor shift)
z: 0 µm to -150 µm (optical back focal length)
α: ±0.5° (sensor rotation)

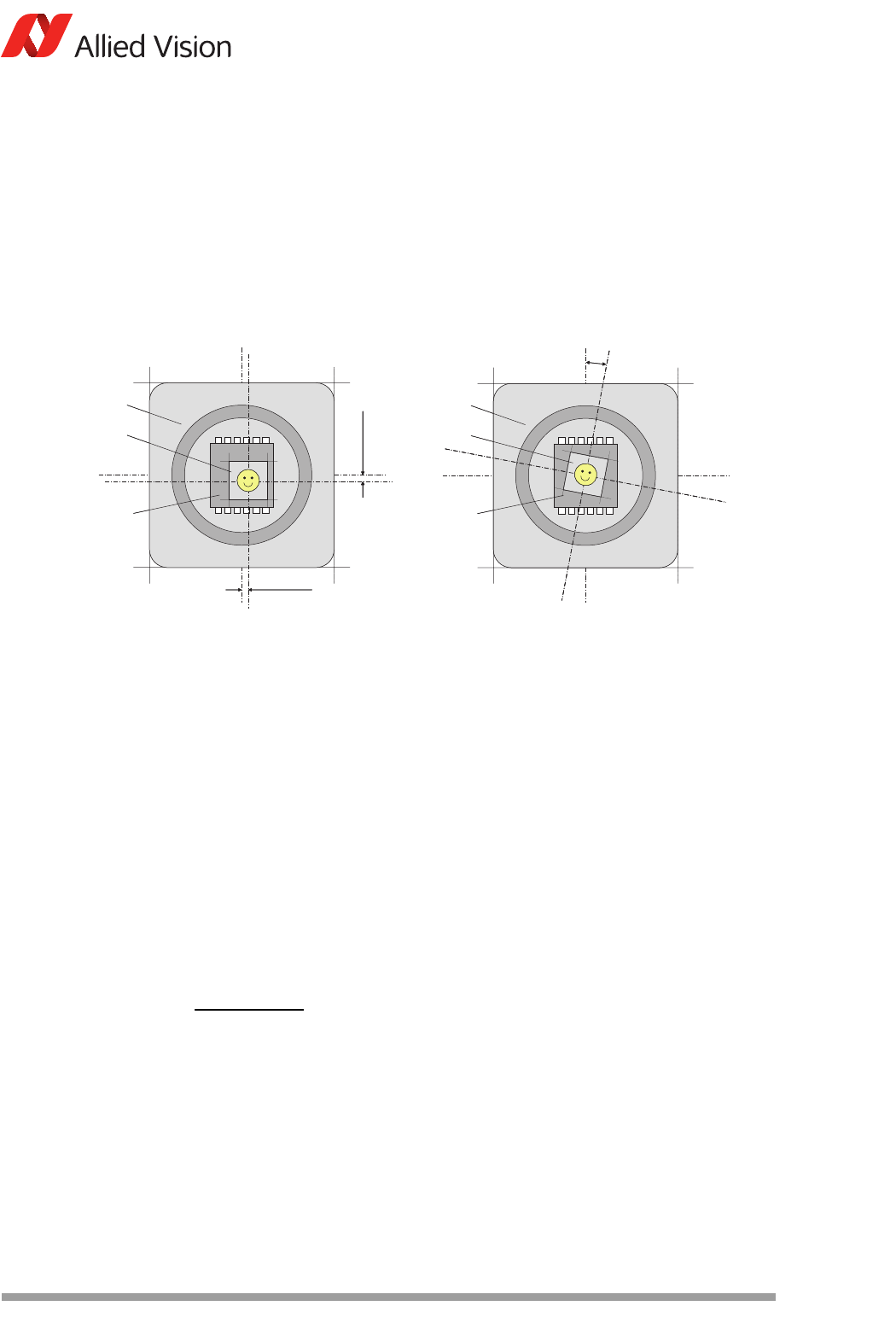

Figure 59: Allied Vision sensor position accuracy
Note
x/y - tolerances between the C-Mount hole and the
pixel area may be higher.
x
y
Sensor case
D
Camera body
Pixel area
Sensor case
Camera body
Pixel area
