Instruction manual

Mako Technical Manual V3.0.0
70
Resolution and ROI frame rates
Mako G-095B/C: ROI frame rates
Maximum frame rate at full resolution according to formula: 42.8 fps
* CCD = theoretical maximum frame rate (in fps) of CCD according to given formula
Formula 4: Mako G-095: theoretical maximum frame rate of CCD

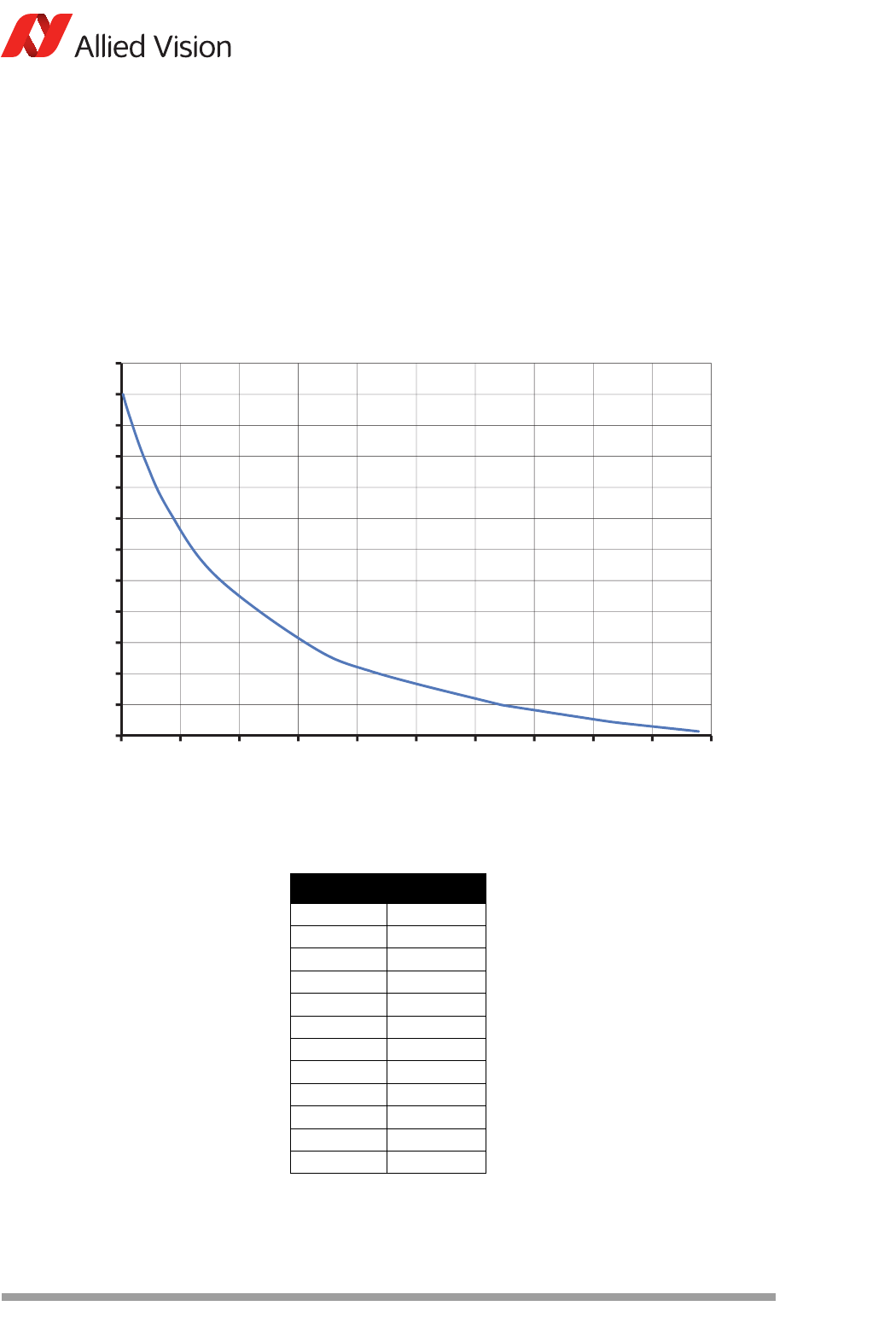

Figure 53: Frame rates Mako G-095 as function of ROI height [width=1292]
ROI height Frame rate*
734 42.8
640 47.9
614 49.5
492 59.1
480 60.2
320 81.1
240 98.1
120 143.0
60 185.4
30 217.8
10 246.4
2260.1
Table 33: Frame rates (fps) of Mako G-095 as function of ROI height (pixel) [width=1292]
Max. frame rate of CCD
1
31.54 µs ROI height 4.87 µs 734 ROI height– 219.97 µs++
------------------- ---------------------- ---------------------- -------------------------- ---------------------- --------------------------- ------------
=
40
60
80
100
120
140
160
180
200
220
240
260
280
0 75 150 225 300 375 450 525 600 675 750
Frame rate [fps]
Height [pixels]
