Instruction manual

Mako Technical Manual V3.0.0
68
Resolution and ROI frame rates
Mako G-032B/C: ROI frame rates
Maximum frame rate at full resolution according to formula: 102.3 fps
* CCD = theoretical maximum frame rate (in fps) of CCD according to given formula
Formula 2: Mako G-032: theoretical maximum frame rate of CCD

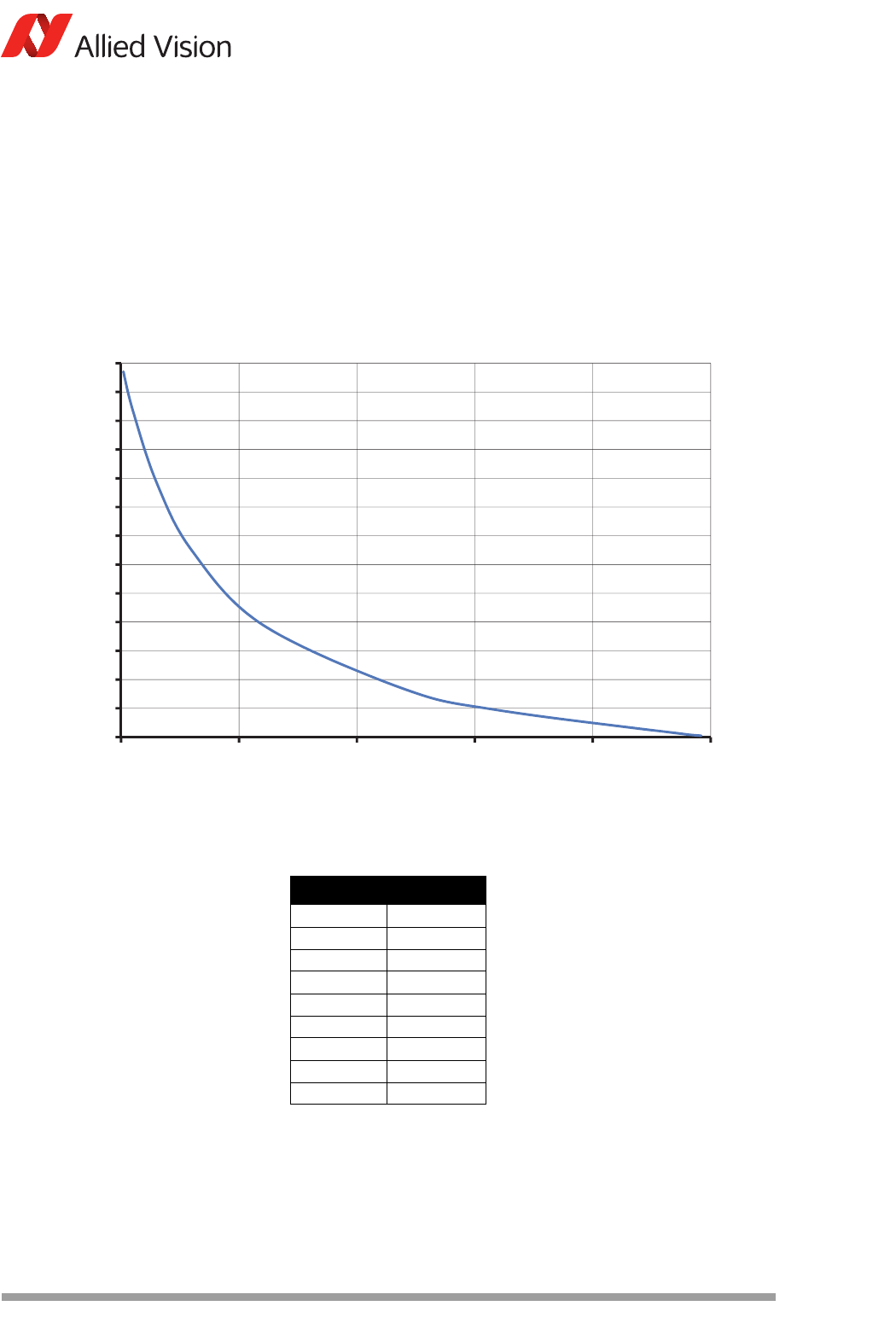

Figure 51: Frame rates Mako G-032 as function of ROI height [width=658]
ROI height Frame rate*
492 102.3
480 104.5
320 146.6
240 183.5
120 295.3
60 424.5
30 543.3
10 667.9
2735.4
Table 31: Frame rates (fps) of Mako G-032 as function of ROI height (pixel) [width=658]
Max. frame rate of CCD
1
19.46 µs ROI height 2.29 µs 492 ROI height– 195.81 µs++
------------------- ---------------------- ---------------------- -------------------------- ---------------------- --------------------------- ------------
=
100
150
200
250
300
350
400
450
500
550
600
650
700
750
0 100 200 300 400 500
Frame rate [fps]
Height [pixels]
