Mako Technical Manual V3.0.0
43
Camera dimensions
Adjustment of the C-Mount and CS-Mount
The dimensional adjustment cannot be done by the customer. All modifications
have to be done by the Allied Vision factory.
Mako standard housing
Note
If you need any adjustments, please contact Customer Care:
For phone numbers and e-mail:
see Contacting Allied Vision on page 5.

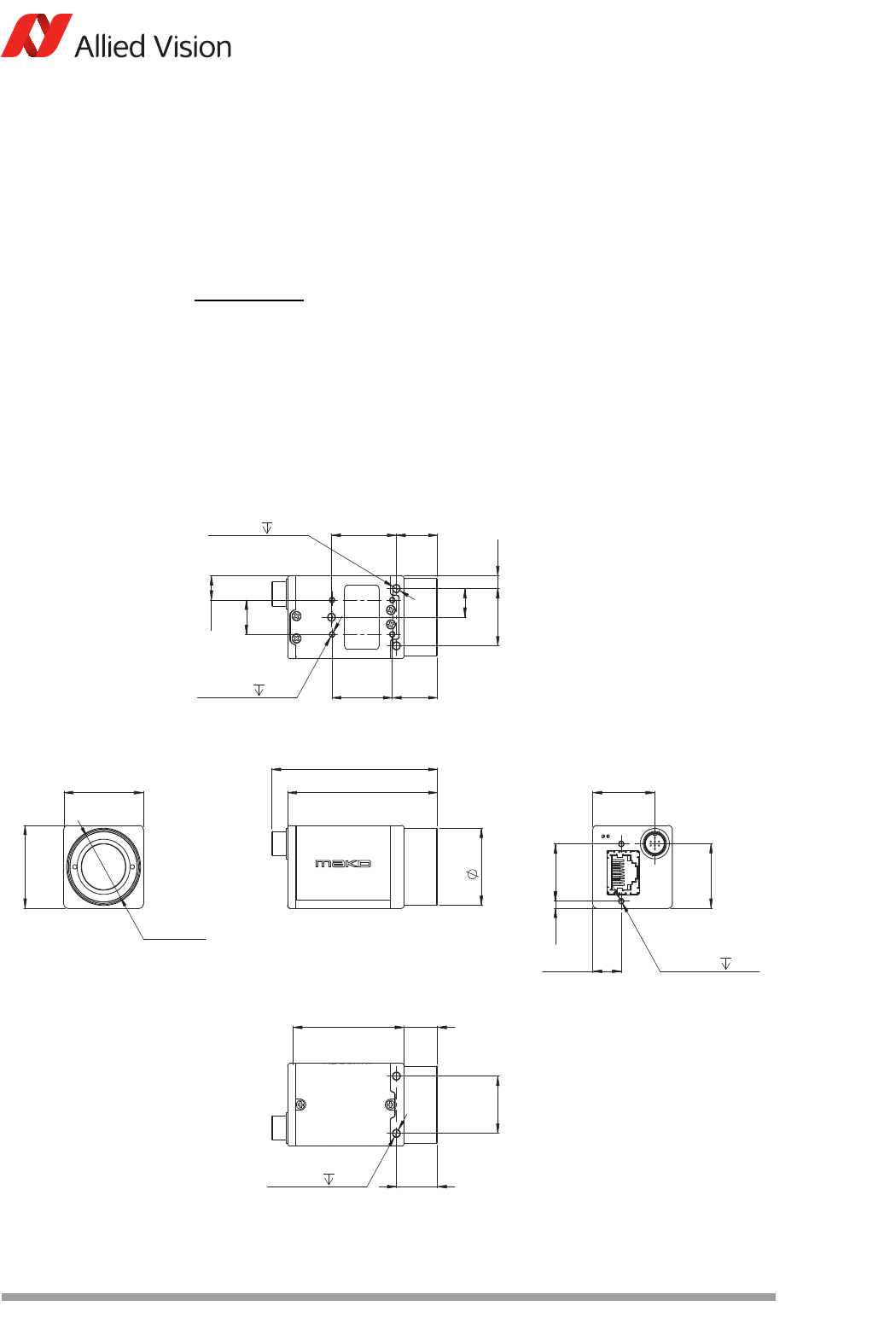

Figure 31: Camera dimensions standard housing (in mm)
27
60.5
54.7
20
22.6
22.6
2.5
10.4
M2 - 4.5
(2x)
12
20
15 23.7
22 16.5
M3 - 2.3
(3x)
M2 - 2.2
(4x)
10
8.5
4.5 20
M3 - 2.3
(2x)
15
40.5 12.2
29
29
C-Mount
