Chapter 5: Multiple Spanning Tree Protocol
82
Multiple Spanning Tree Configuration
To configure the MSTP settings, perform the following procedure:
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select the Spanning Tree folder.
The Spanning Tree folder expands.
3. From the Spanning Tree folder, select the MSTP folder.
The MSTP folder expands.
4. From the MSTP folder, select MSTP.
The Multiple Spanning Tree Configuration Page is displayed. See
Figure 25 on page 82.

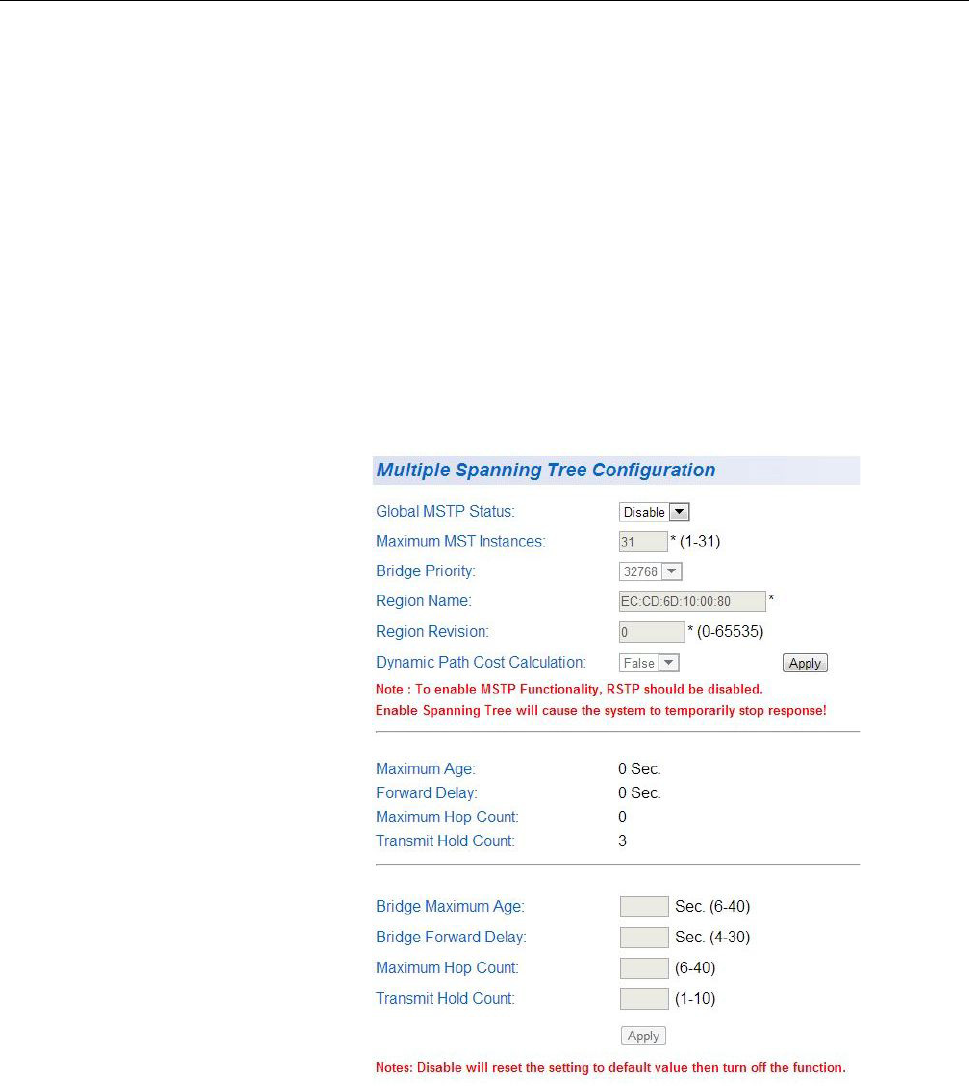

Figure 25. Multiple Spanning Tree Configuration Page
The MSTP Configuration page allows you to configure the MSTP
parameters as well as to view current settings of the feature.
In the upper portion of the page, you can set the
