AT-GS950/48PS Switch Web Interface User’s Guide
313
Traffic Comparison Statistics
The Traffic Comparison statistics chart allows you to display a specified
traffic statistic over all of the ports. You can select 12 statistic types and 12
colors for each port.
To display traffic comparison statistics, perform the following procedure:
1. Select the Statistics Chart folder.
The Statistics Chart folder expands.
2. From the Statistics Chart folder, select Traffic Comparison.
The Traffic Comparison Page opens as shown in Figure 123.

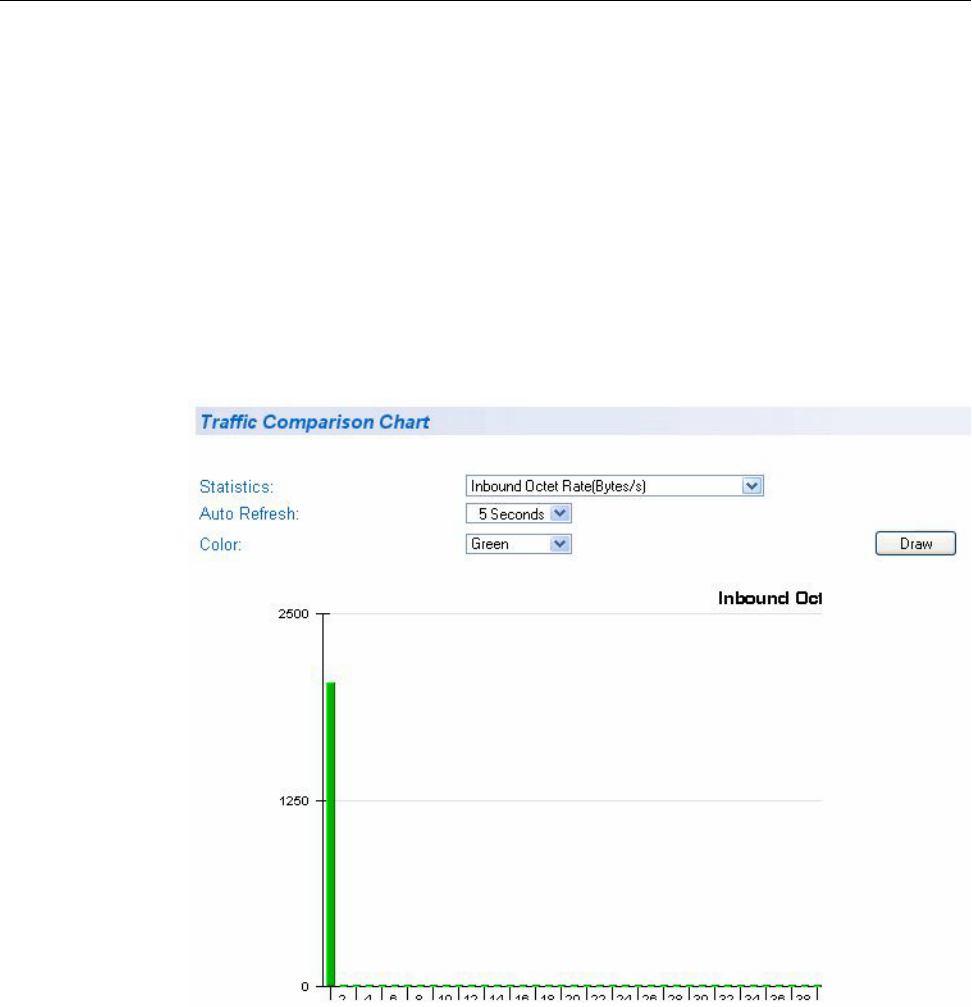

Figure 123. Traffic Comparison Page
3. To view traffic statistics, click on the arrow next to “Statistics” and
select one of the options in Table 8.
