Chapter 23: DHCP Snooping
300
VLAN - Enter the host’s VLAN ID.
Port - Enter the port number where the host is connected.
Type - Because the IP Address being entered is static, you must
select Static.
Lease Time - Enter the time that IP address assignment is valid. The
range is 10 to 4294967295 seconds.
2. Click Add.
The static address information is entered into the Binding Database.
See Figure 120 for an example.

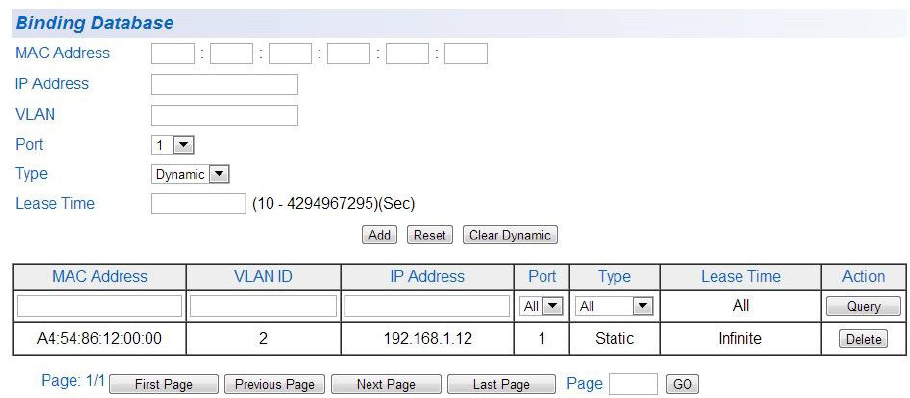

Figure 120. Binding Database Page Example
Viewing A dynamically assigned IP address from the DHCP server automatically
populates the table on the Binding Database page. You must enter
statically assigned IP Addresses and their corresponding fields at the top
of the web page. See “Static IP Addresses” on page 299 for more
information.
The Binding Database table at the bottom of the web page displays the
following information:
MAC Address: This parameter shows the host’s MAC Address.
VLAN ID: This parameter shows the host’s VLAN ID of which the
DHCP client is a member.
IP Address: This parameter is the IP Address assigned by the
DHCP server to the DHCP client.
Port: This parameter is the port number where the DHCP client is
connected.
