AT-GS950/48PS Switch Web Interface User’s Guide
299
Binding Database
The Binding Database displays learned and statically assigned MAC
Address and IP Address information for each host on the local area
network. Dynamically assigned IP addresses from the DHCP server will
automatically populate the table on the Binding Database page as they are
assigned by the server. Statically assigned IP addresses are entered
manually by entering the host’s address information and clicking on the
Add button.
The following procedure describes how to configure the DHCP Snooping
Binding Database on the AT-GS950/48PS switch for static IP addresses
and how to view the MAC Address and IP Address information for all of the
hosts on your local area network:
1. From the main menu on the left side of the page, select DHCP
Snooping.
The DHCP Snooping folder expands.
2. From the DHCP Snooping folder, select Binding Database.
The AT-GS950/48PS Binding Database page is displayed. See Figure
119.

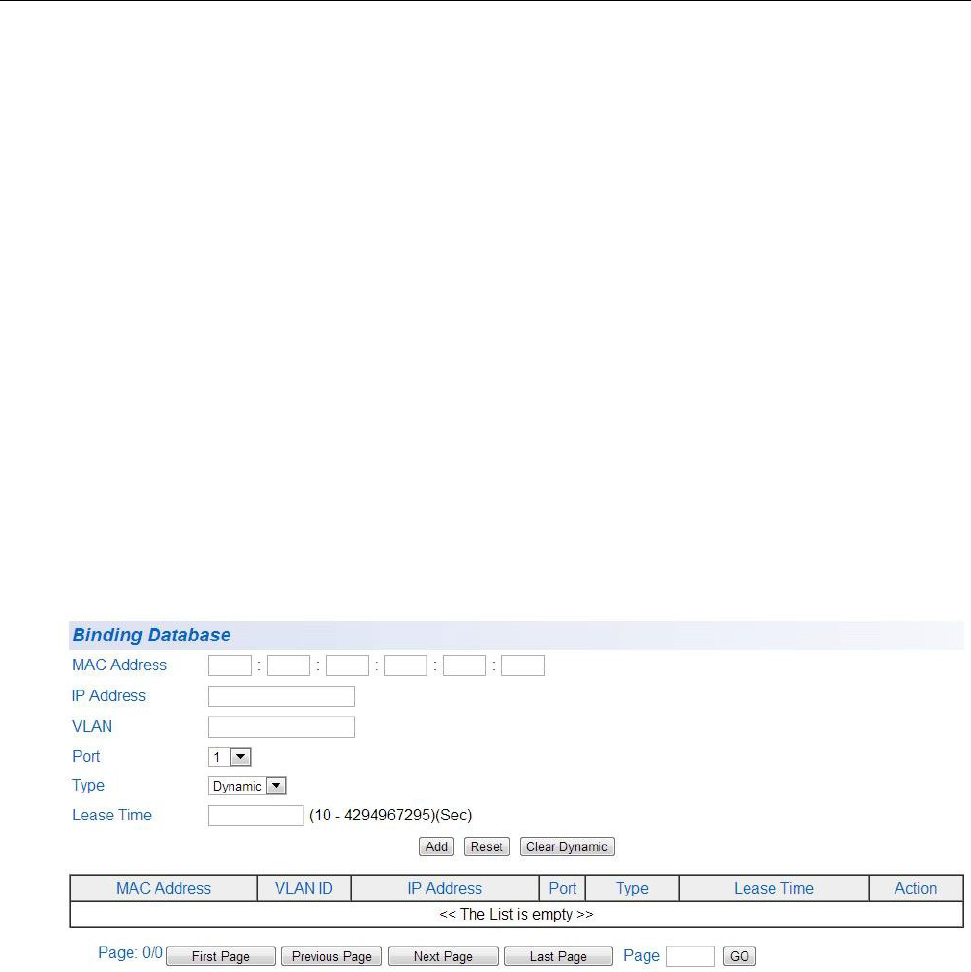

Figure 119. AT-GS950/48PS Binding Database Page
Static IP
Addresses
To enter a statically assigned IP address for a host, perform the following
procedure:
1. Enter the host information into the following fields:
MAC Address - Enter the host’s MAC Address.
IP Address - Enter the static IP Address assigned to the host.
