Chapter 22: Power Over Ethernet (PoE)
286
PoE Configuration
To configure the basic STP and RSTP settings, perform the following
procedure:
1. From the main menu on the left side of the page, select Power Over
Ethernet Configuration.
The Power Over Ethernet Configuration page is displayed. See
Figure 114.

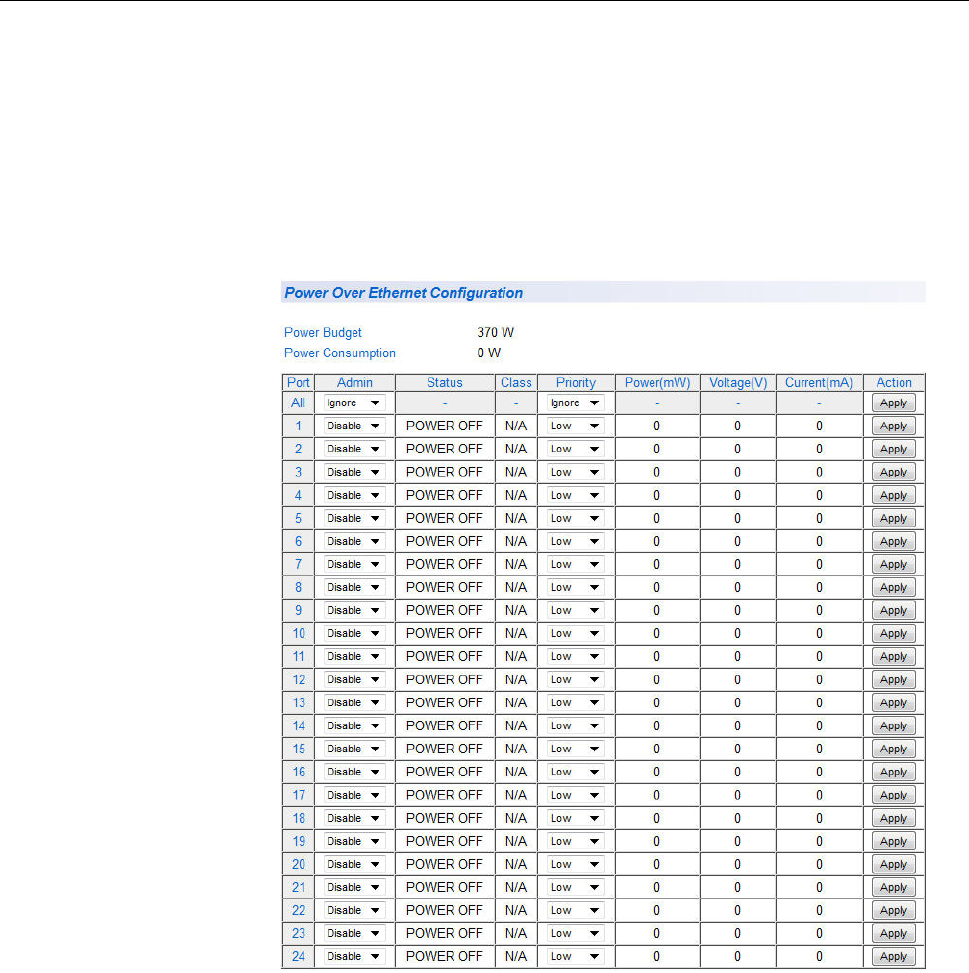

Figure 114. Power Over Ethernet Configuration Page
The Power Over Ethernet Configuration page displays the PoE status and
allows you to configure PoE feature with the following parameters:
Port - Indicates the port with a specific PoE status and that you are
configuring.
Admin - To activate or deactivate PoE on a specific port, select
Enable or Disable. By default the PoE feature is disabled on all
