Chapter 20: Voice VLAN
262
Configuration
Prior to configuring your voice VLAN, you must first configure a tagged
VLAN. This VLAN will be used as a basis for your voice VLAN.
Note
See “Create a Tagged VLAN” on page 157 for more information
about configuring a tagged VLAN with Not Member and Static
tagged ports.
The procedure described in this section allows you to configure a voice
VLAN on the AT-GS950/48PS switch.
To configure a voice VLAN, perform the following procedure:
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select Voice VLAN.
The Voice VLAN folder expands.
3. From the Voice VLAN folder, select Voice VLAN Settings.
The AT-GS950/48PS Voice VLAN Setting Page is displayed. See
Figure 105 for a partial view of this page.

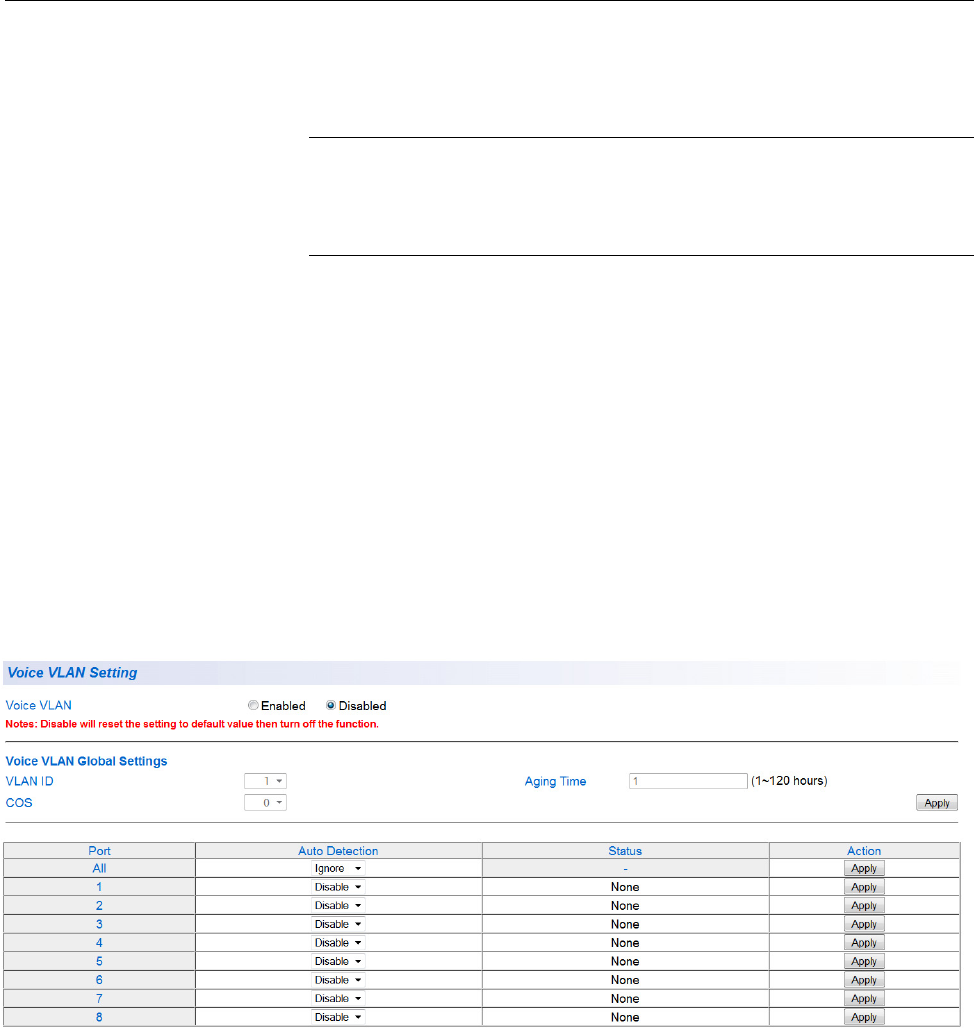

Figure 105. AT-GS950/48PS Voice VLAN Setting Page
Before entering any configuration parameters, you must enable the
voice VLAN to activate the other parameter fields in the Voice Vlan
Global Settings section which are greyed out.
