user manual

AT-GS950/48PS Switch Web Interface User’s Guide
235
Port List
The Create Port List page allows you to specify a list of ports that will be
used as part of the policy specification.
You can create, modify or delete a Port List by following the procedures in
the following sections:
 “Create Port List,” next
 “Modify Port List” on page 236
 “Delete Port List” on page 237
Create Port List To create an Port List, perform the following procedure:
1. From the main menu on the left side of the page, select the Access
Control Config folder.
The Access Control Config folder expands.
2. From the Access Control Config folder, select Port List.
The Create Port List page is displayed in Figure 88.

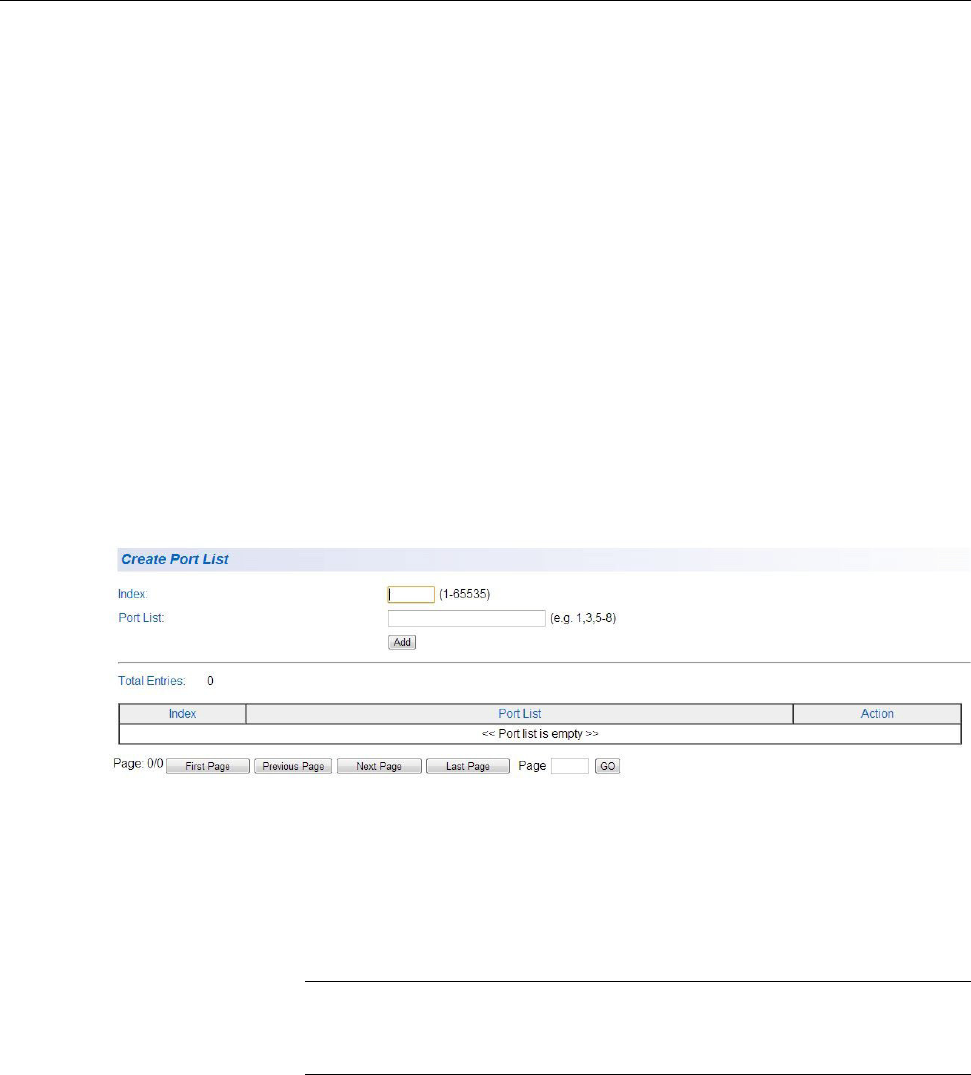

Figure 88. Create Port List Page
3. Enter a number in the Port List Index field.
The Index must be a unique number within the range of 1 - 65536
4. 35. This field is mandatory.
Note
The Port List Index is a required parameter when you create a
Policy. See “Create Policy” on page 238 for more information.
5. Enter a port or group of ports. The Port List can be specified as a
consecutive list, a non- consecutive list or a combination of the two. At
least one or more ports must be specified.
