AT-GS950/48PS Switch Web Interface User’s Guide
233
7. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
Modify Out-
Profile Action
To modify a Out-Profile action entry, perform the following procedure:
Note
Before you can modify an entry, you must first enter a Out-Profile
action - see “Creating an In-Profile Action” on page 227.
1. From the main menu on the left side of the page, select the Access
Control Config folder.
The Access Control Config folder expands.
2. From the Access Control Config folder, select Out-Profile Action.
An example of the Create Out-Profile Action page with a Out-Profile
Action table entry is shown in Figure 86 on page 232.
3. Select the table entry that you want to modify and click the Modify link
in the Action column.
The Modify Out-Profile Action page is displayed. See Figure 87.

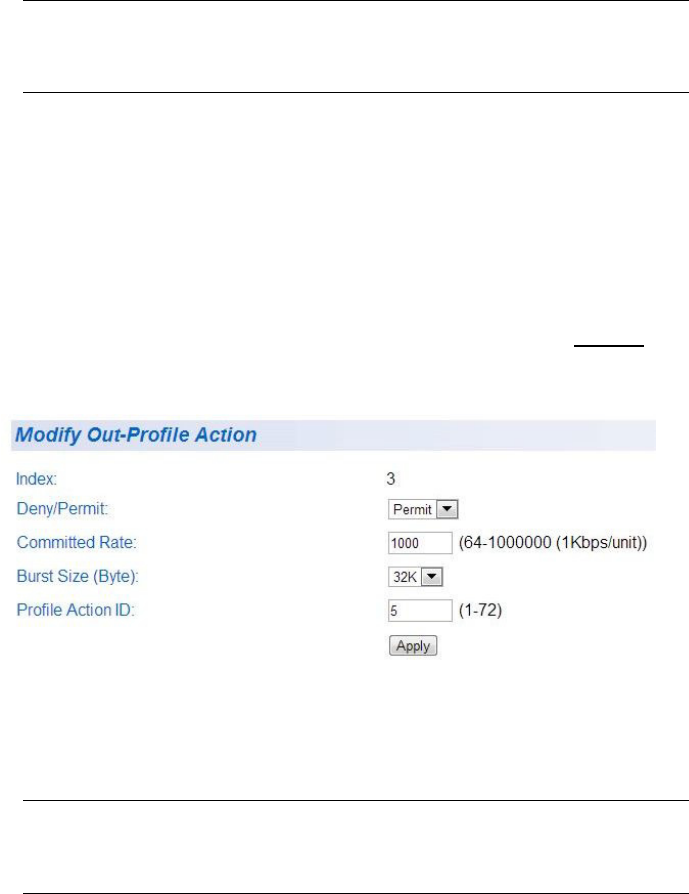

Figure 87. Modify Out-Profile Action Page
4. Change the parameters as required.
Note
See “Creating an In-Profile Action” on page 227 for the definitions of
each parameters.
5. Click Apply.
The modified Out-Profile action entry is displayed in the table at the
bottom of the page of the Create Out-Profile Action page.
6. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
