Chapter 18: Access Control Configuration
232
4. Enter a number in the Profile Action ID field ranging from 0 to 72.
This field is mandatory.
Note
This field must be pre-defined on the Create Profile page - see
“Creating a Profile Action” on page 224 for more information.
5. In the Deny/Permit field, use the pull down menu to select one of the
following parameters:
Deny - This selection drops ingress packets that conform to the
specified Profile Action ID.
Permit - This selection allows ingress packets that conform to the
specified Profile Action ID to be processed by the switch.
Note
You must enter a selection for Deny/Permit field even if the Profile
Action ID that you have entered ignores both the Policed-DSCP and
Policed-CoS fields.
6. Click Add.
The Out-Profile Action entry is added to the status table. If the Page
field located below the table displays a page number and you do not
see your new entry, then there are multiple pages of the table that you
can navigate. This is done by clicking on the First Page, Previous
Page, Next Page, and Last Page buttons located below the table. An
example of a Out-Profile Action table entry is displayed in Figure 86 on
page 232.

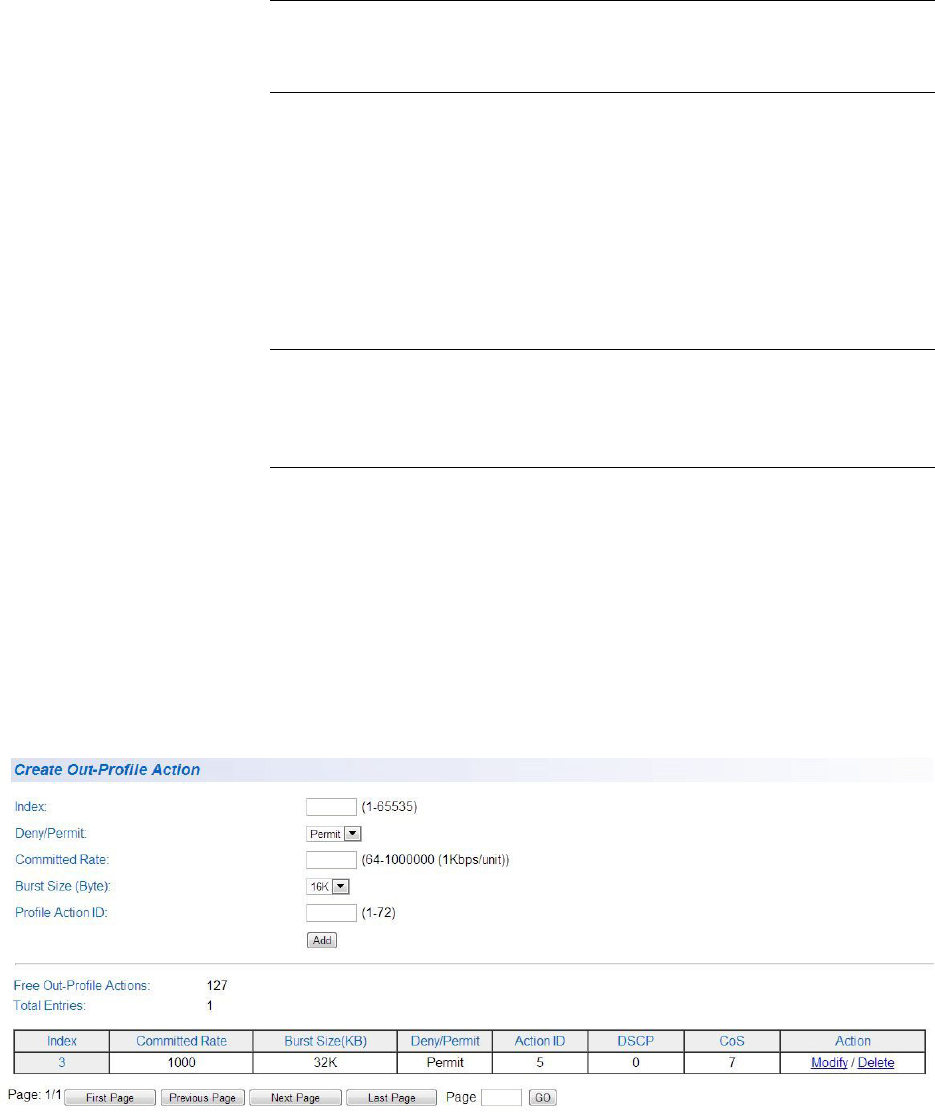

Figure 86. Example of Out-Profile Action Entry
