AT-GS950/48PS Switch Web Interface User’s Guide
231
Out-Profile Action
The Create Out-Profile Action page allows you to specify a Profile Action’s
Permit or Deny privilege and bandwidth restrictions for packets in the
egress queue.
You can create, modify or delete an Out-Profile Action by following the
procedures in the following sections:
“Creating a Out-Profile Action,” next
“Modify Out-Profile Action” on page 233
“Delete Out-Profile Action” on page 234
Creating a Out-
Profile Action
To create a Out-Profile Action, perform the following procedure:
1. From the main menu on the left side of the page, select the Access
Control Config folder.
The Access Control Config folder expands.
2. From the Access Control Config folder, select Out-Profile Action.
The Create Out-Profile Action page is displayed in Figure 85.

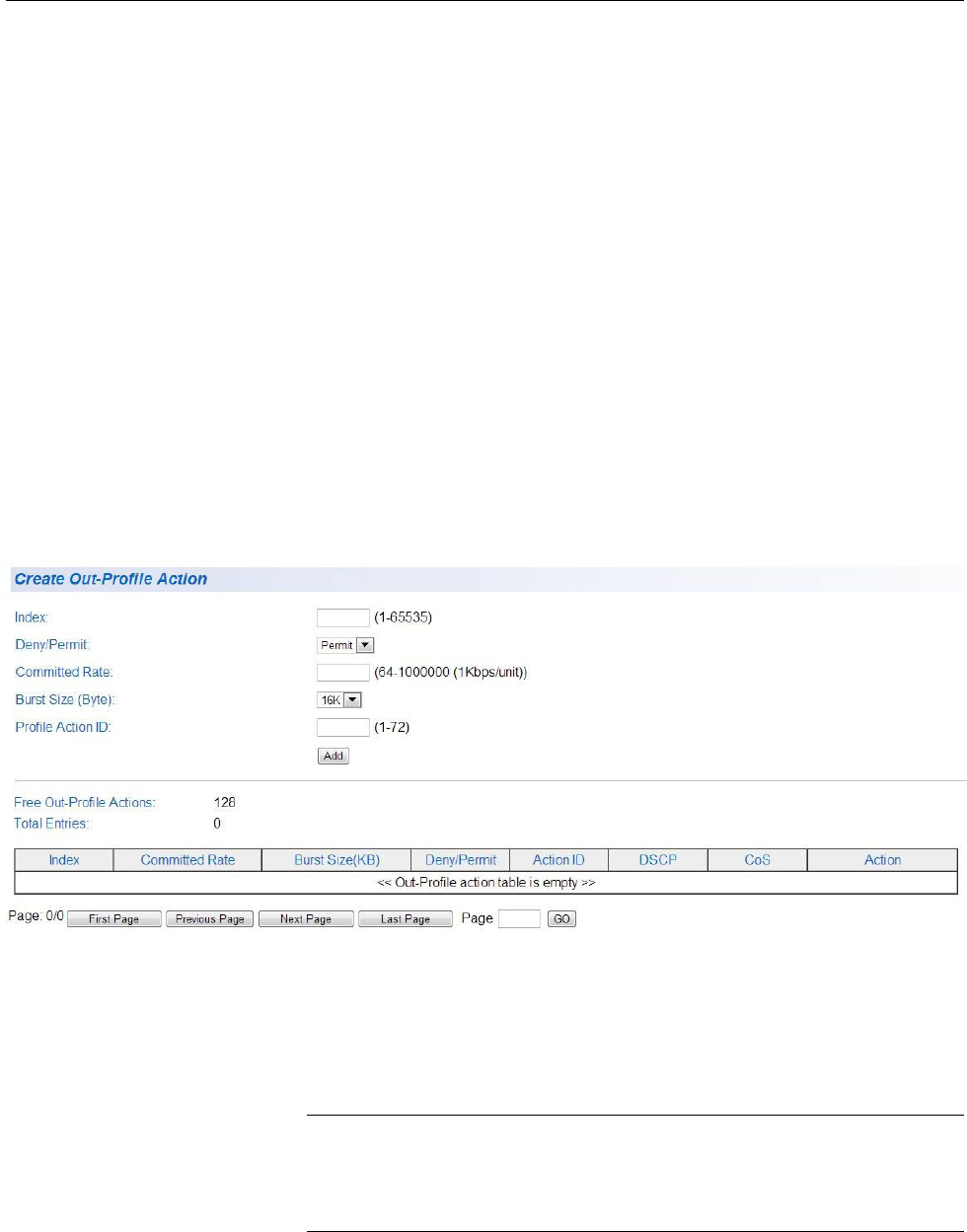

Figure 85. Create Out-Profile Action Page
3. Enter a number in the Out-Profile Action Index field.
The Index must be a unique number within the range of 1 - 65535. This
field is mandatory.
Note
The Out-Profile Action Index must match a Policy Index that has
been pre-defined when you created a Policy. See “Create Policy” on
page 238 for more information.
