Chapter 18: Access Control Configuration
226
2. From the Access Control Config folder, select Profile Action.
An example of the Create Profile Action page with a Profile Action
table entry is shown in Figure 79 on page 224.
3. Select the table entry that you want to modify and click the Modify
link
in the Action column.
The Modify Profile Action page will be displayed. See Figure 81.

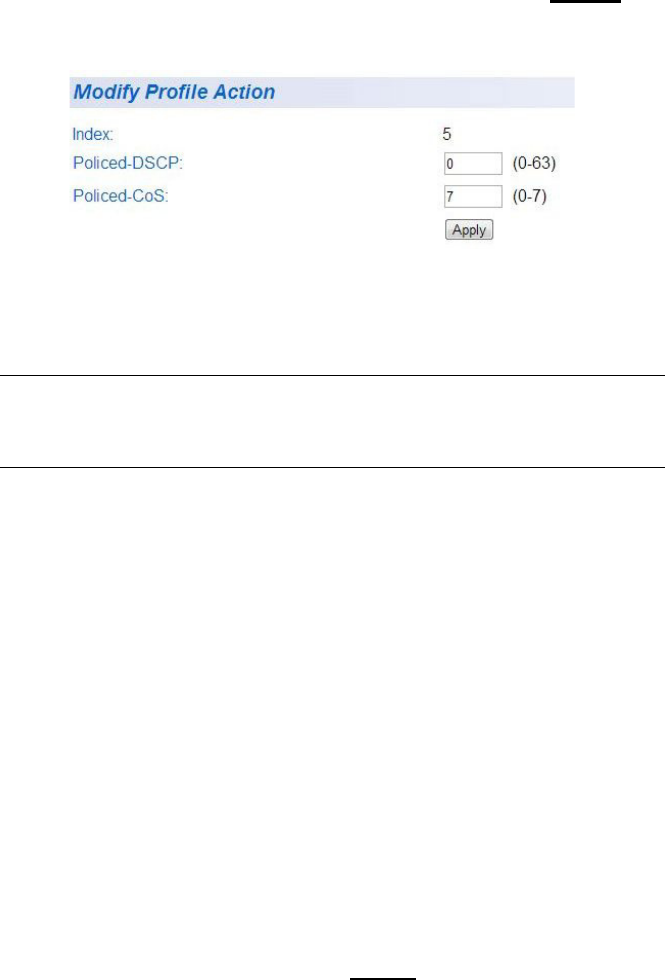

Figure 81. Modify Profile Action Page
4. Change the parameters as required.
Note
See “Creating a Profile Action” on page 224 for the definitions of
each parameters.
5. Click Apply.
The modified profile action entry is displayed in the table at the bottom
of the page of the Create Profile Action page.
6. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
Deleting a Profile
Action
To delete a profile action entry, perform the following procedure:
1. From the main menu on the left side of the page, select the Access
Control Config folder.
The Access Control Config folder expands.
2. From the Access Control Config folder, select Profile Action.
An example of the Create Profile Action page with a Profile Action
table entry is shown in Figure 81.
3. From the Create Profile Action page, identify which profile action table
entry that want to delete and click the Delete link in the Action column.
You are prompted with a verification message.
4. Click on the OK button.
The profile action entry is deleted from the profile action table.
5. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
