AT-GS950/48PS Switch Web Interface User’s Guide
225
3. Enter a number in the Profile Action Index field.
The Index must be a unique number ranging from 1 to 72.
4. Enter a number in the Policed DSCP field within the range of 0 to 63.
This field indicates the DSCP level of interest. This field is not
mandatory and you may elect to leave it blank.
5. Enter a number in the Policed-CoS field ranging from 0 to 7. This field
indicates the CoS level of interest. This field is not mandatory and you
may elect to leave it blank.
6. Click Add.
The Profile Action is added to the status table. If you do not see you
new entry, you may need to navigate to another page of the table with
the First Page, Previous Page, Next Page, and Last Page buttons
located below the table. An example of a Profile Action table entry is
displayed in Figure 80.

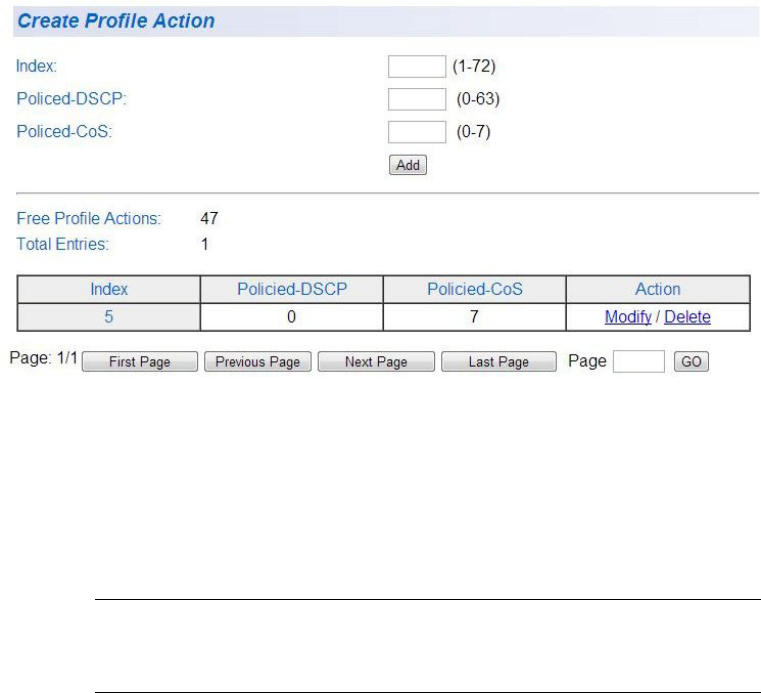

Figure 80. Example of Profile Action Entry
7. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
Modifying Profile
Action
To modify a profile action entry, perform the following procedure:
Note
You must first enter a profile action before you can modify it. See
“Creating a Profile Action” on page 224 for more information.
1. From the main menu on the left side of the page, select the Access
Control Config folder.
The Access Control Config folder expands.
