Note
The Community Name must correlate with one of the communities
displayed on the SNMP Community Table page. See “SNMP
Community Strings” on page 196. If you enter a Community Name
that has not been pre-defined, the Trap Host entry is displayed, but
agent/manager communication fails.
7. Click Add.
The new host is added to the table.

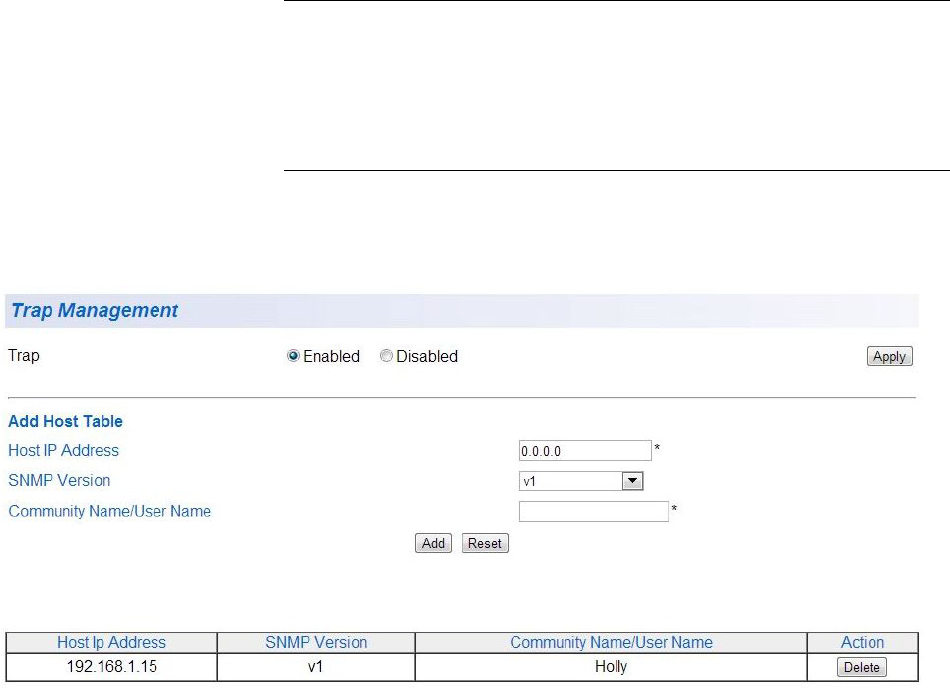

Figure 68. Trap Management Page Example
8. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
Modify a Trap
Host Table Entry
If you need to modify an SNMP Trap entry, you must first delete the entry
by using the procedure below and then re-enter it with the modification by
creating a new SNMP trap- see “SNMP Traps” on page 198.
Delete a Trap
Host Table Entry
Use the following procedure to delete a Host table entry:
1. From the main menu on the left side of the page, select the SNMP
folder.
The SNMP folder expands.
2. From the SNMP folder, select Trap Management.
3. The Trap Management Page is displayed. See Figure 67 on page 198.
