AT-GS950/48PS Switch Web Interface User’s Guide
197
5. Click Add.
The values of the new Community Name and User Name are
displayed. See Figure 66 for an example.

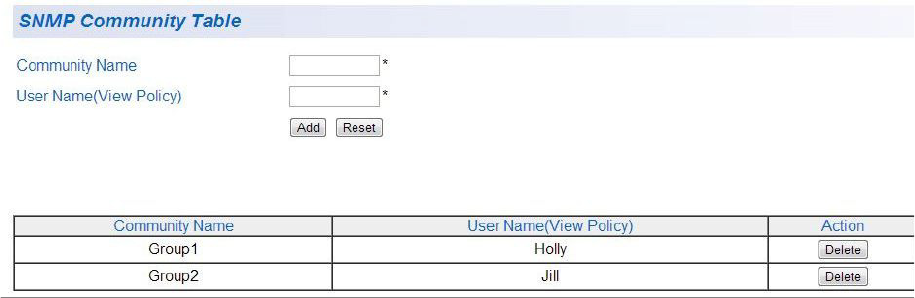

Figure 66. SNMP Community Table Page Example
6. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
Modify SNMP
Community
Strings
If you need to modify a Community Table entry, you must first delete the
entry by using the procedure below and then re-enter it with the
modification by creating a new Community table entry. See “SNMPv1 and
SNMPv2c User and Group Names” on page 193.
Delete SNMP
Community
Strings
Use the following procedure to delete a community name of an SNMP
community from the Community Table.
1. From the main menu on the left side of the page, select the SNMP
folder.
The SNMP folder expands.
2. From the SNMP folder, select Community Table.
The Community Table Page is shown in Figure 65 on page 196.
3. To delete a Community Name, click Delete next to the entry in the
table that you want to remove.
The deleted Community Name is no longer displayed in the
Community table. No confirmation message is displayed.
4. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
