Chapter 14: GVRP
170
Port Settings
Perform the following procedure to configure the GVRP port settings:
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select GVRP.
The GVRP folder expands.
3. From the GVRP folder, select Port Setting.
A partial view of the AT-GS950/48PS Port Settings Page is displayed.
See Figure 57.

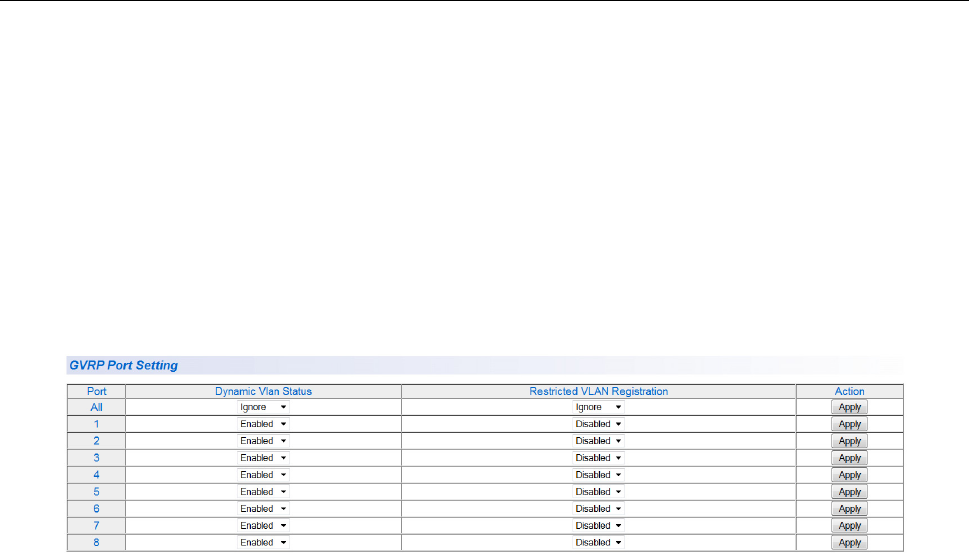

Figure 57. GVRP Port Setting Page
4. The following fields are listed for each port:
Port - This parameter displays the ports on the switch.
Dynamic Vlan Status - This parameter defines the GVRP status
of the port. From the Dynamic Vlan Status field, select one of the
following choices from the pull-down menu:
Ignore - This parameter indicates that the setting in the All row
does not apply to the Dynamic Vlan Status field. In other
words, each port is set individually.
Enable - The Dynamic Vlan is activated for the port row
selected.
Disable - The Dynamic Vlan is de-active for the port row
selected.
Restricted VLAN Registration - This parameter controls if the
VLAN registration on the port is restricted or not.
Ignore - This parameter indicates that the setting in the All row
does not apply to the Restricted VLAN Registration field. In
other words, each port is set individually.
Enable - The Restricted VLAN Registration is active for the
