AT-GS950/48PS Switch Web Interface User’s Guide
159
2. From the Bridge folder, select VLAN.
The VLAN folder expands.
3. From the VLAN folder, select Tagged VLAN.
An example of a tagged VLAN (Index 2, Sales VLAN) is shown in the
table at the bottom of Figure 51 on page 159. (A partial view of the
Tagged Vlan page is shown.)

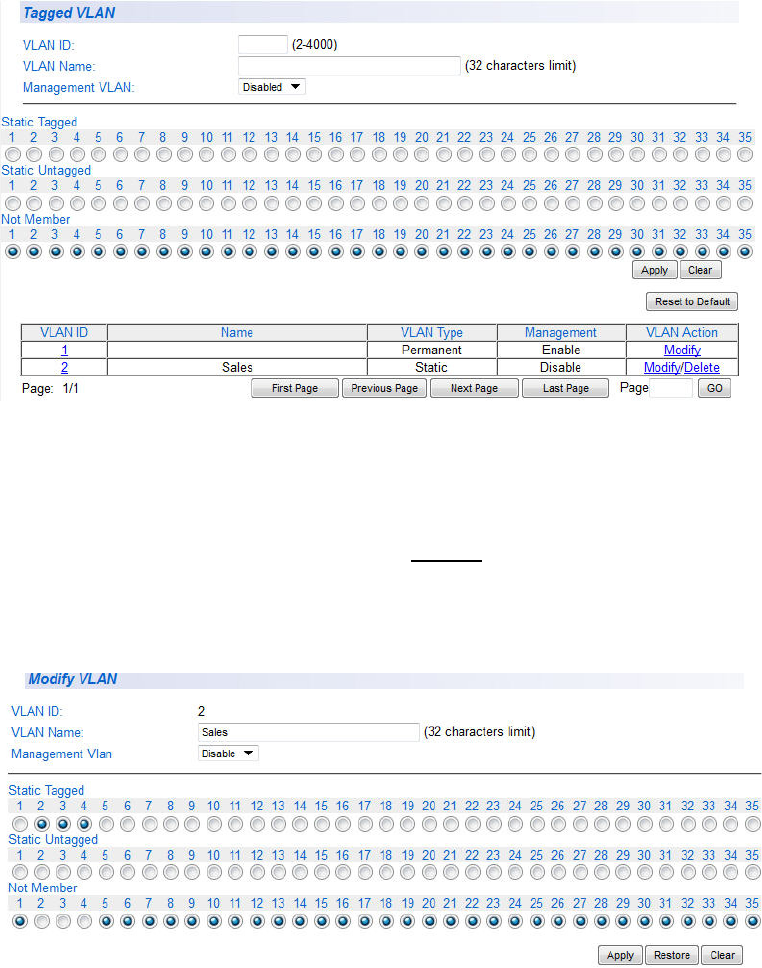

Figure 51. Example of AT-GS950/48PS Tagged VLAN Page
4. In the VLAN Action column, click Modify
in the row of the VLAN that
you want to change.
The Modify VLAN Page is displayed. See Figure 52 on page 159. (A
partial view of the Modify VLAN Page is shown.)
Figure 52. AT-GS950/48PS Modify VLAN Page
