AT-GS950/48PS Switch Web Interface User’s Guide
157
Tagged VLAN Configuration
On a port, the tag information within a frame is examined when it is
received to determine if the frame is qualified as a member of a specific
tagged VLAN. If it is, it is eligible to be switched to other member ports of
the same VLAN. If it is determined that the frame’s tag does not conform to
the tagged VLAN, the frame is discarded.
You can create and delete tagged VLANs by following the procedures in
the following sections:
“Create a Tagged VLAN”
“Modify a Tagged VLAN” on page 158
“Delete a Tagged VLAN” on page 160
Create a Tagged
VLAN
To create a tagged VLAN, perform the following procedure:
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select VLAN.
The VLAN folder expands.
3. From the VLAN folder, select Tagged VLAN.
The AT-GS950/48PS Tagged VLAN Page is displayed. See Figure 50.

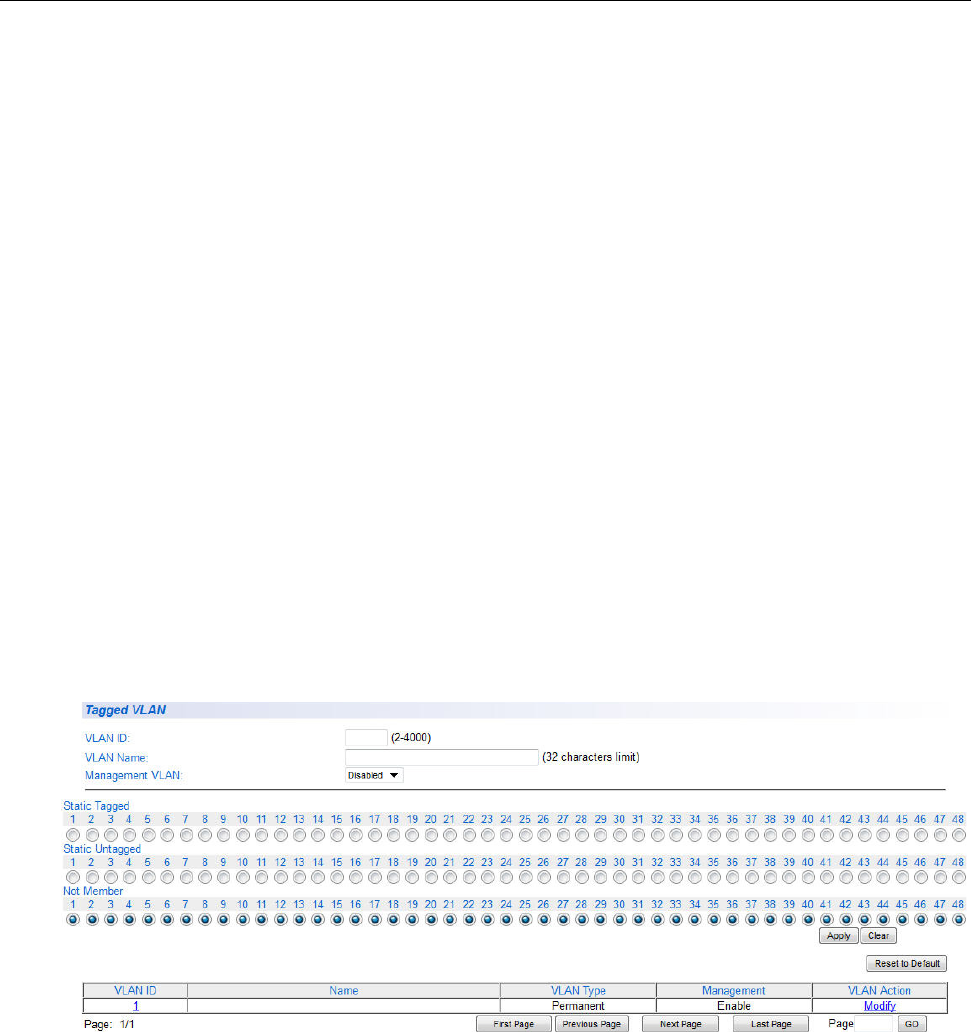

Figure 50. AT-GS950/48PS Tagged VLAN Page
