Assign Ports to a VLAN Mode
The procedure described in this section allows you to assign ports to
tagged or a port-based VLAN. In addition, it permits you to display the
current VLAN assignment of ports.
However, you can assign ports to a port-based VLAN only after you have
created a port-based VLAN with the procedure described in “Port-Based
VLAN Configuration” on page 164.
By default, all of the ports on the switch are assigned as untagged
members to the default tagged VLAN with a VLAN ID of 1. The default
VLAN is permanent and must have at least one untagged port assigned to
it at any time.
To assign ports to a 802.1Q Tagged VLAN or Port-Based VLAN, perform
the following procedure:
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select VLAN.
The VLAN folder expands.
3. From the VLAN folder, select VLAN Mode.
The VLAN Mode Page is displayed. See Figure 49 for a partial view of
this page.

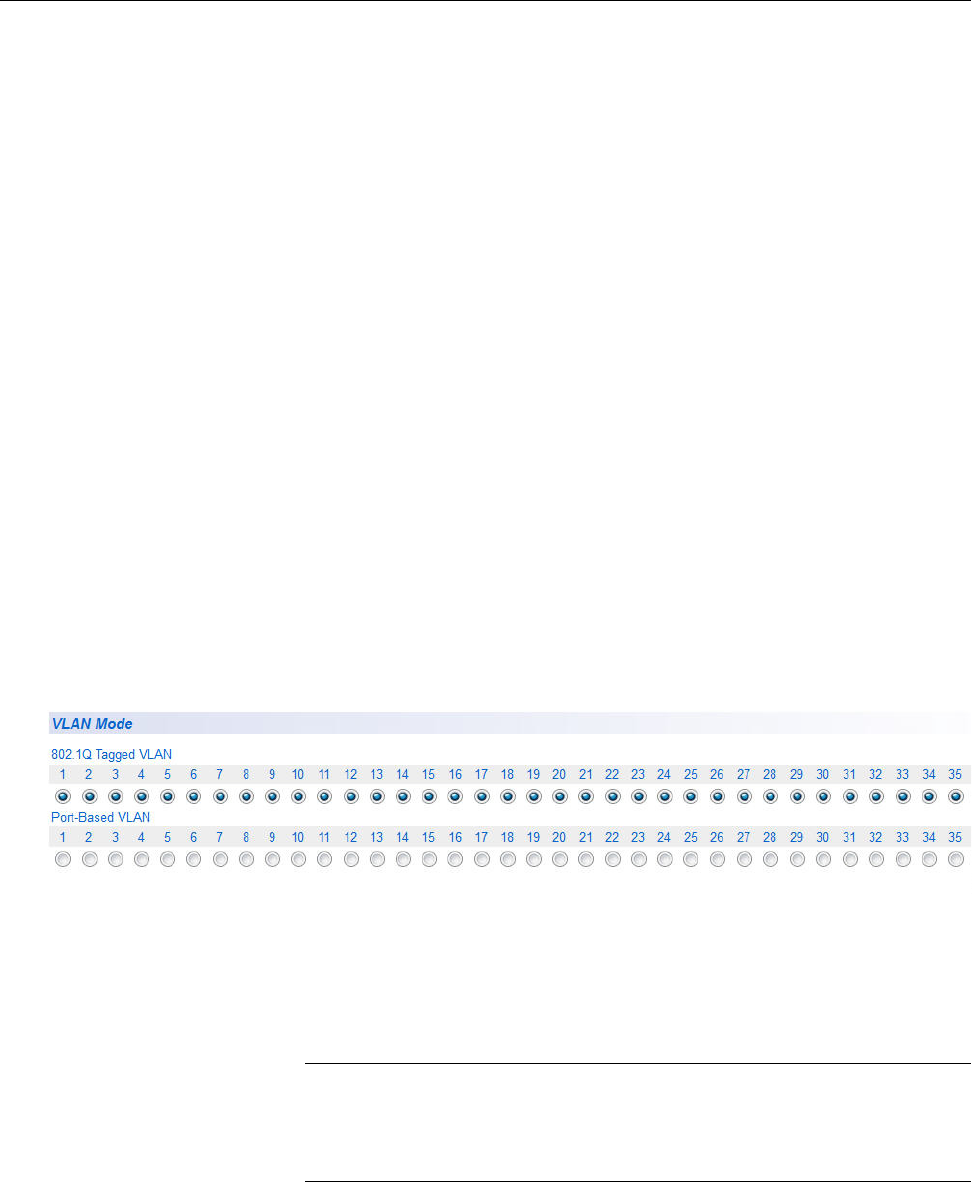

Figure 49. AT-GS950/48PS VLAN Mode Page
4. To add ports to a 802.1Q Tagged VLAN or Port-Based VLAN, select
the ports accordingly on the VLAN Mode page.
Note
Before you assign a port as a member of a Port-Base VLAN, you
must create the Port-Base VLAN by following the steps defined in
“Port-Based VLAN Configuration” on page 164
5. Click Apply.
