Chapter 11: IGMP Snooping
138
IGMP Snooping Configuration
This procedure explains how to set IGMP snooping and IGMP Snooping
Querier on the switch and set the IGMP Snooping (V1) age-out timer.
To configure IGMP snooping, perform the following procedure:
1. From the main menu on the left side of the page, select the Bridge
folder.
The Bridge folder expands.
2. From the Bridge folder, select the Trunk Config folder.
3. From the Trunk Config folder, select IGMP Snooping.
The IGMP Snooping Page is displayed. See Figure 44.

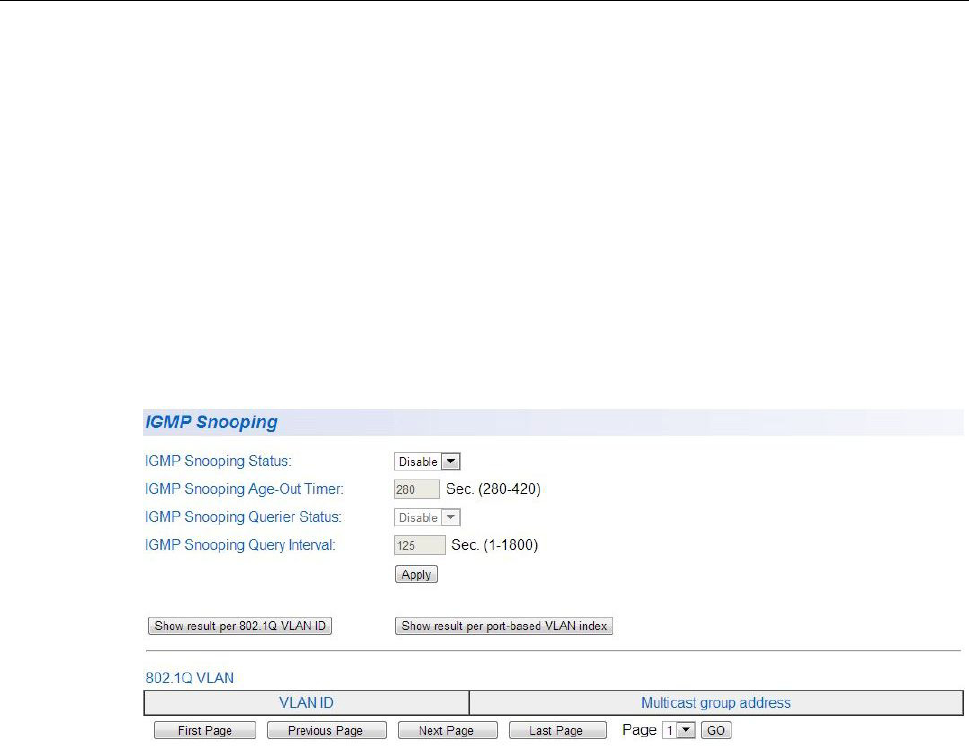

Figure 44. IGMP Snooping Page
4. To enable or disable IGMP Snooping on the switch, select Enable or
Disable from the pull-down menu.
5. To set the age-out timer, type the number of seconds you want the
switch to wait before it purges an inactive dynamic MAC address.
The range of this parameter is from 280 to 420 seconds.
6. To enable the IGMP Snooping Querier, select Enable or Disable from
the pull-down menu next to IGMP Snooping Querier Status.
7. To sent the IGMP Snooping Query Interval, set the timer from 1 to
1800 seconds.
8. Click Apply.
