Chapter 10: MAC Address Table
128
Modify Static Unicast Address
To modify the port assignment of a unicast MAC address in the MAC
address table, perform the following procedure:
1. From the main menu on the left side of the page, select the Bridge
folder.
2. From the Bridge folder, select Static Unicast.
The Static Unicast Address Table Page is displayed. See Figure 38 on
page 126.
3. Select Modify next to the static MAC address that you want to change.
The Modify Static Unicast Address Page is displayed.
See Figure 40 for a partial view of this page.

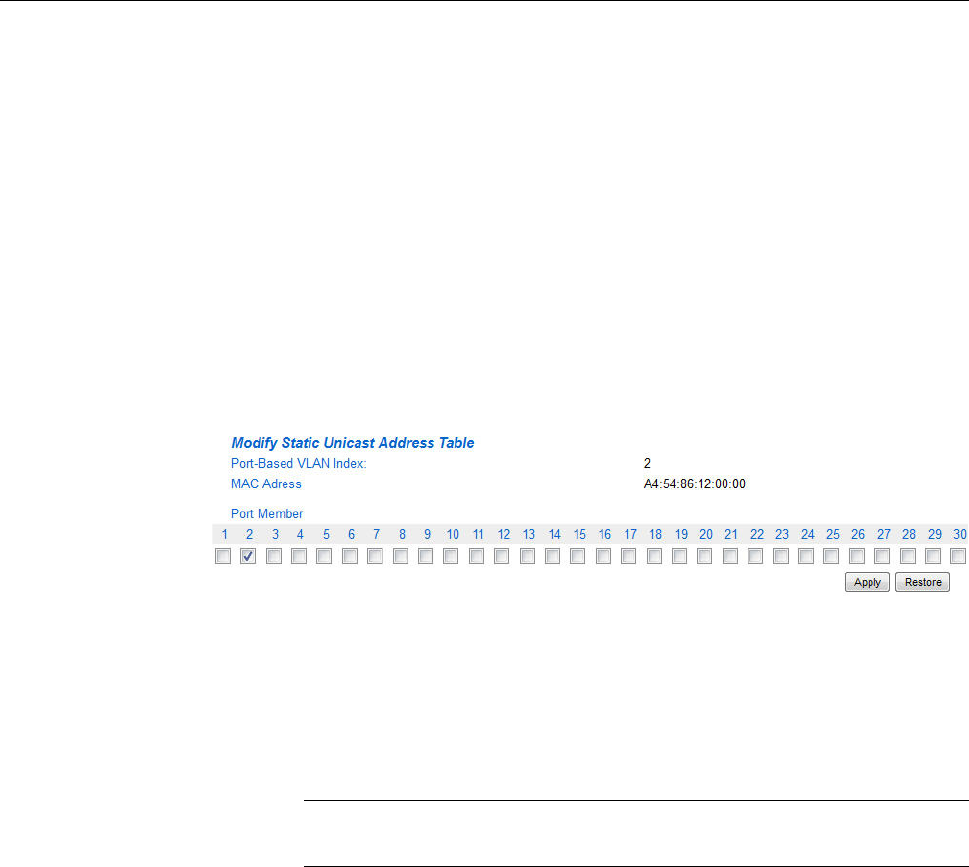

Figure 40. Modify Static Unicast Address Page
4. In the Group Member row, select the check boxes for the ports that
you want to include or remove in the Group Member area. Selected
ports are indicated with a check mark.
Note
To restore the original group member ports, click Restore.
5. Click Apply.
6. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
