AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide

Assigning a MAC Address

You can assign a new unicast or multicast MAC address to the MAC

address table. See the following procedures:

 “Assigning an Unicast Address” on page 99

 “Assigning a Multicast Address” on page 100

Assigning an

Unicast Address

To assign an unicast MAC address to the MAC address table, do the

following:

1. Select the Switching tab.

The Switching tab is displayed. See Figure 19 on page 58.

2. Select Mac Table and then move the cursor to the right to select

Unicast.

The Unicast MACs page is displayed. See Figure 33 on page 97.

3. Click Add

The Unicast MAC Page is displayed. See Figure 35

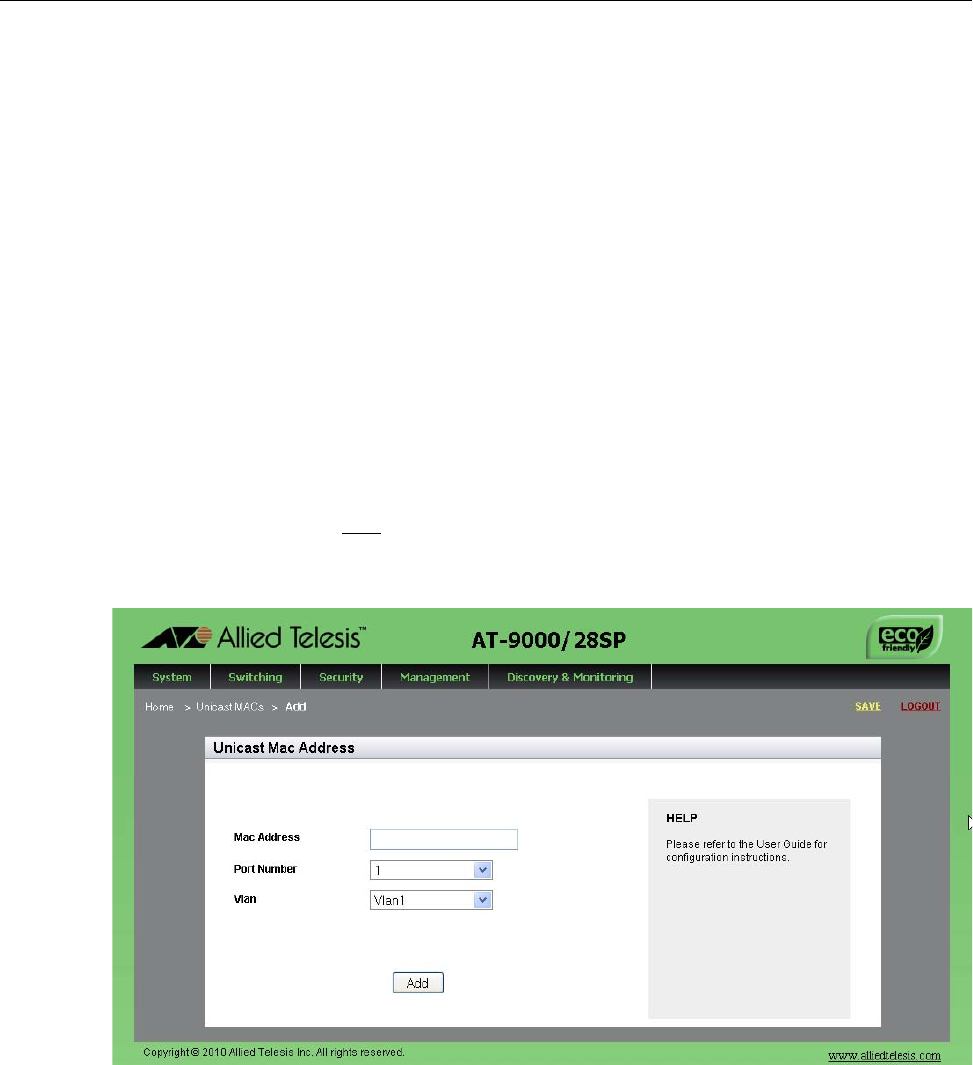

Figure 35. Unicast MAC Page

4. Enter a unicast MAC address in the Mac Address field. Use the

following format: xx:xx:xx:xx:xx:xx
