AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide

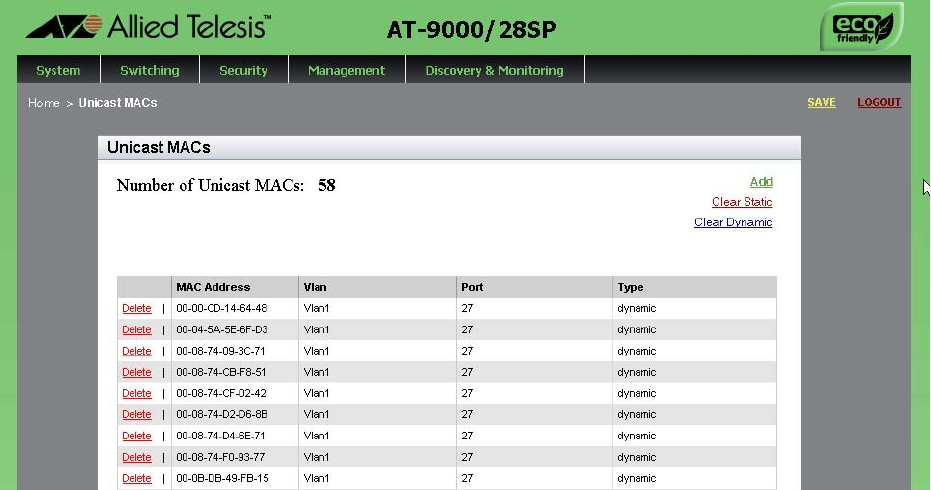

Figure 33. Unicast MACs Page

The following fields are displayed:

 MAC Address— Indicates the dynamic or static unicast MAC

address learned on or assigned to the port.

 Vlan— The ID number of the VLAN where the node designated by

the MAC address is a member. The default VLAN is Vlan1.

 Port— Indicates the port where the address was learned or

assigned.

 Type— Indicates the type of MAC address, static or dynamic.

Displaying

Multicast

Addresses

To display the multicast addresses in the MAC address table, do the

following:

1. Select the Switching tab.

The Switching tab is displayed. See Figure 32 on page 96.

2. Select Mac Table and then move the cursor to the right to select

Multicast.

The Multicast MACs Page is displayed. See Figure 34 on page 98.
