AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide

Displaying Port Spanning Tree Protocol Settings

To display the Spanning Tree Protocol settings for all of the switch ports,

do the following:

1. Select the Switching tab.

The Switching tab is displayed. See Figure 19 on page 58.

2. From the Switching tab, select Port.

3. Move the cursor to the right and select Spanning Tree.

The Port Spanning Tree Settings page is displayed. See Figure 30.

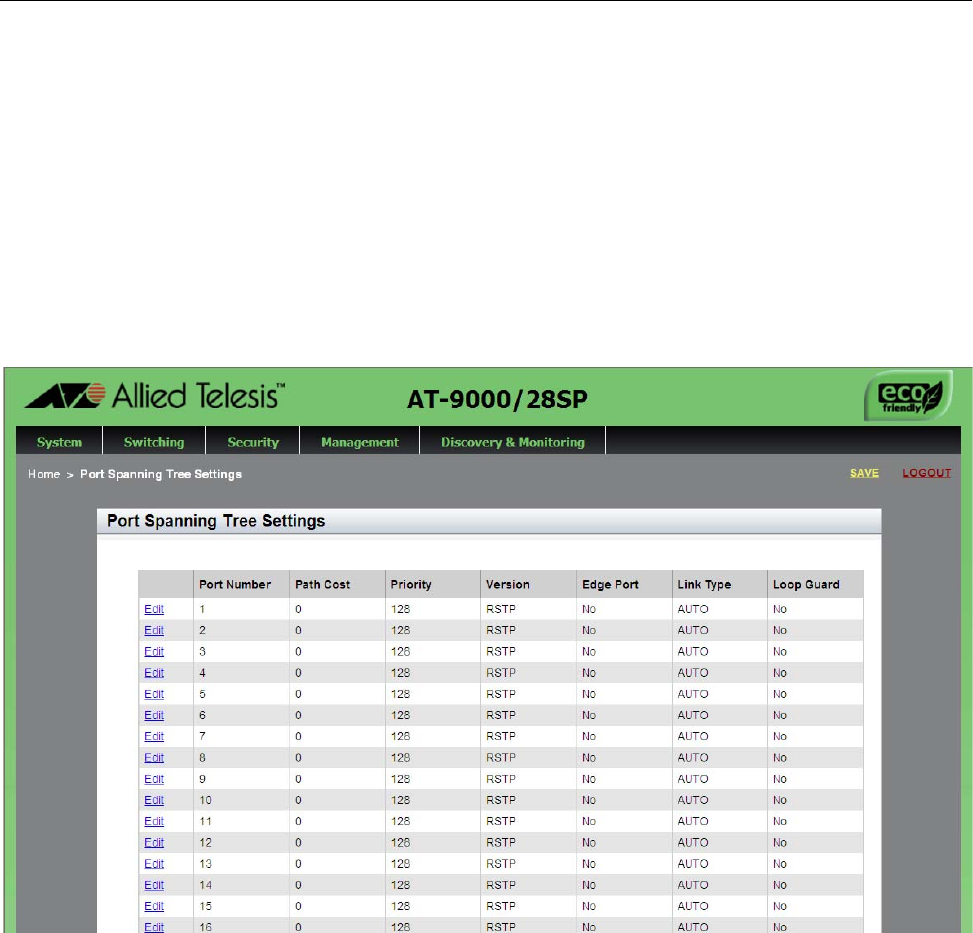

Figure 30. Port Spanning Tree Settings Page

The following fields are displayed:

 Port Number— Indicates the port number.

 Path Cost— Indicates the cost of a port to the root bridge. This

cost is combined with the costs of the other ports in the path to the

root bridge, to determine the total path cost. The lower the numeric

value, the higher the priority of the path. The range is 6 to 40.

 Priority (0-15)— Indicates a bridge priority number for the switch.

The device with the lowest priority number in the spanning tree
