Displaying Port Mirroring Settings
To display the port mirroring assignments for all of the switch ports, do the
following:
1. Select the Switching tab.
The Switching tab is displayed. See Figure 19 on page 58.
2. From the Switching tab, select Port.
The Port tab is displayed.
3. From the Port tab, select Mirroring.
4. Move the cursor to the right and select Mirroring.
The Port Mirroring List page is displayed. See Figure 28.

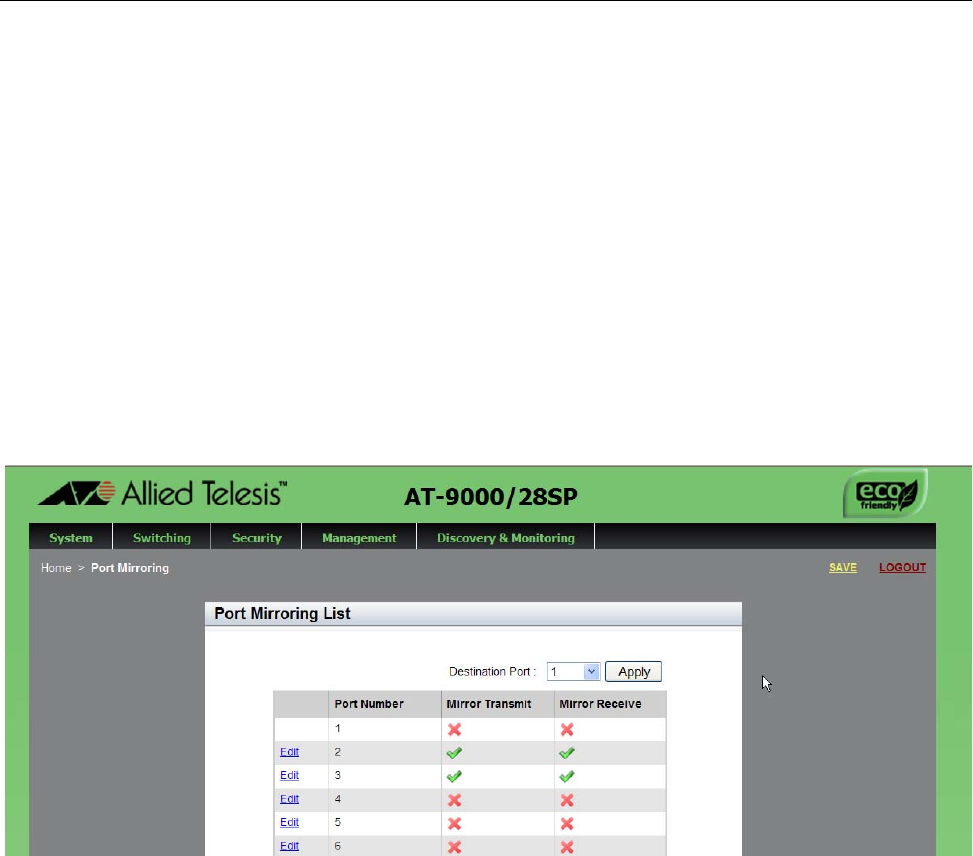

Figure 28. Port Mirroring List Page
The following fields are displayed:
Destination Port— Specifies the port where the packets from the
source ports are copied and where the network analyzer is
connected. There can be only one destination port assigned to the
switch. In Figure 28, the Destination Port is port 1.
Port Number— Indicates the port number.
Mirror Transmit— Indicates a source port whose transmitted, or
egress, packets are mirrored and monitored. There can be multiple
source ports on the switch.
