Chapter 5: Setting Port Statistics

The Port Statistics with the Transmit tab selected is displayed. See

Figure 26.

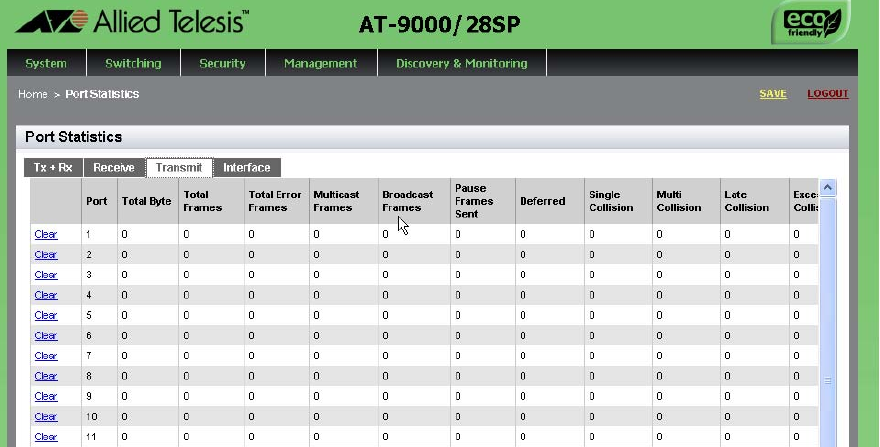

Figure 26. Port Statistics with the Transmit Tab

The following fields are displayed:

 Port— Indicates the port number.

 Total Bytes— Indicates the number of transmitted bytes.

 Total Frames— Indicates the number of transmitted frames.

 Total Error Frames— Indicates the number of transmitted frames

with errors.

 Multicast Frames— Indicates the number of transmitted multicast

frames.

 Broadcast Frames— Indicates the number of transmitted

broadcast frames.

 Pause Frames Sent— Indicates the number of transmitted flow

control pause frames.

 Deferred— Indicates the number of egress frames that the port

could not immediately transmit.

 Single Collision— Indicates the number of frames that were

transmitted after at least one collision.

 Multi Collision— Indicates the number of frames that were

transmitted after more than one collision.

 Late Collision— Indicates the number of late collisions.

 Excessive Collision— Indicates the number of excessive

collisions.
