Chapter 5: Setting Port Statistics

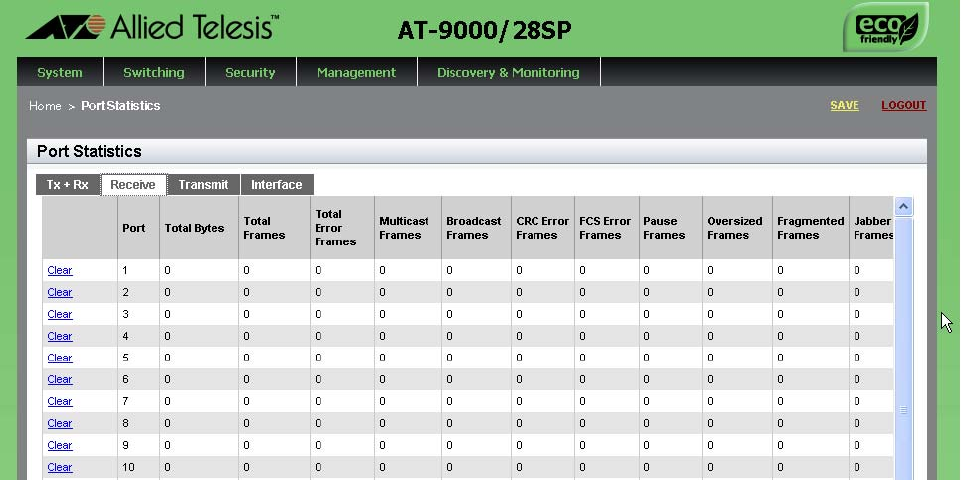

Figure 25. Port Statistics with the Receive Tab

The following fields are displayed:

 Port— Indicates the port number.

 Total Bytes— Indicates the number of received bytes.

 Total Frames— Indicates the number of received frames.

 Total Error Frames— Indicates the total number of received

frames with errors.

 Multicast Frames— Indicates the number of received multicast

frames.

 Broadcast Frames— Indicates the number of received broadcast

frames.

 CRC Frame Errors— Indicates the number of frames with a cyclic

redundancy check (CRC) error but with the proper length (64 -

1518 bytes) received by the port.

 FSC Frame Errors— Indicates the number of ingress frames that

had frame check sequence (FCS) errors.

 Pause Frames— Indicates the number of received flow control

pause frames.

 Oversize Frames— Indicates the number of received frames that

exceeded the maximum size as specified by IEEE 802.3 (1518

bytes including the CRC).
