AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide

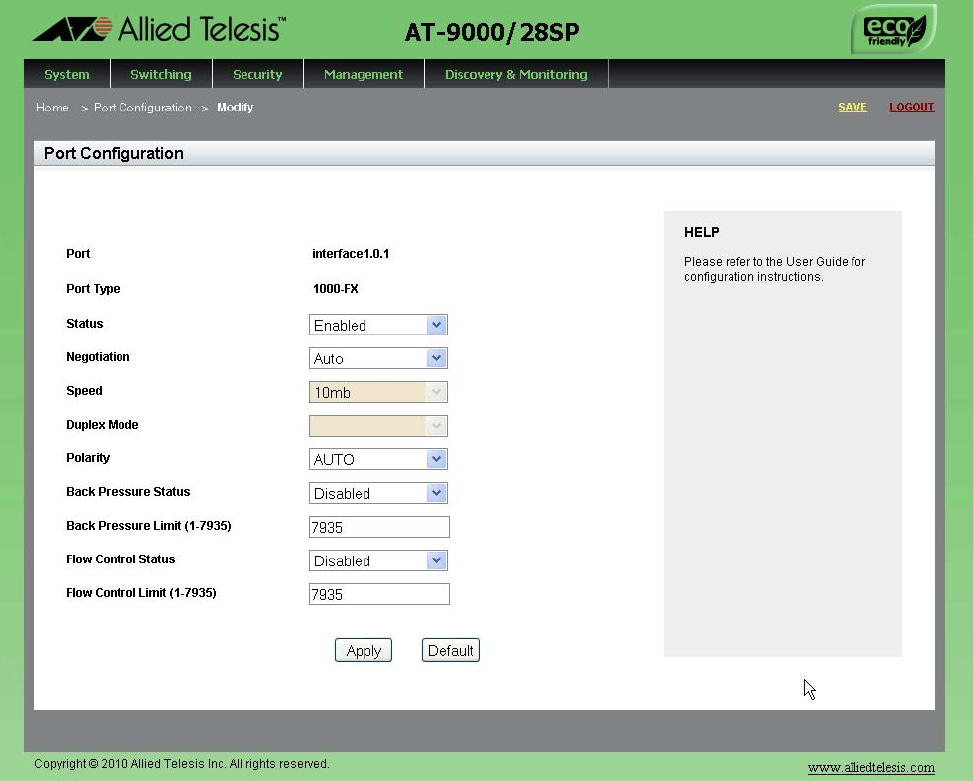

Figure 21. Port Configuration Modify Page

5. Configure the following parameters as needed:

 Port— Indicates the port number.

 Port Type— Indicates the type of port, fiber or copper. You cannot

modify this field.

 Status— Indicates if the port is enabled or disabled. Choose

between “Enabled” or “Disabled.” The default setting is “Enabled.”

Disabling ports turns off their receivers and transmitters so that

they cannot forward traffic. You may want to disable a port if there

is a problem with a cable or network device.

 Negotiation— Indicates the state of Auto Negotiation on a port.

Select “Auto” to enable Auto Negotiation on a port or “Manual” to

disable Auto Negotiation. The default setting is Auto. When the

setting for this field is “Auto,” the Speed and Duplex fields change
