Chapter 3: Basic Switch Parameters

Changing the

User Privilege

To change a privilege of a user, do the following:

1. From the home page, click the System tab.

The System Settings Tab is displayed. See Figure 6 on page 33.

2. From the System Settings tab, select User Management.

The User Management page is displayed. See Figure 14 on page 45.

3. From the User Management page, select the Change Privilege tab.

The User Management page with the Change Privilege tab is

displayed. See Figure 16.

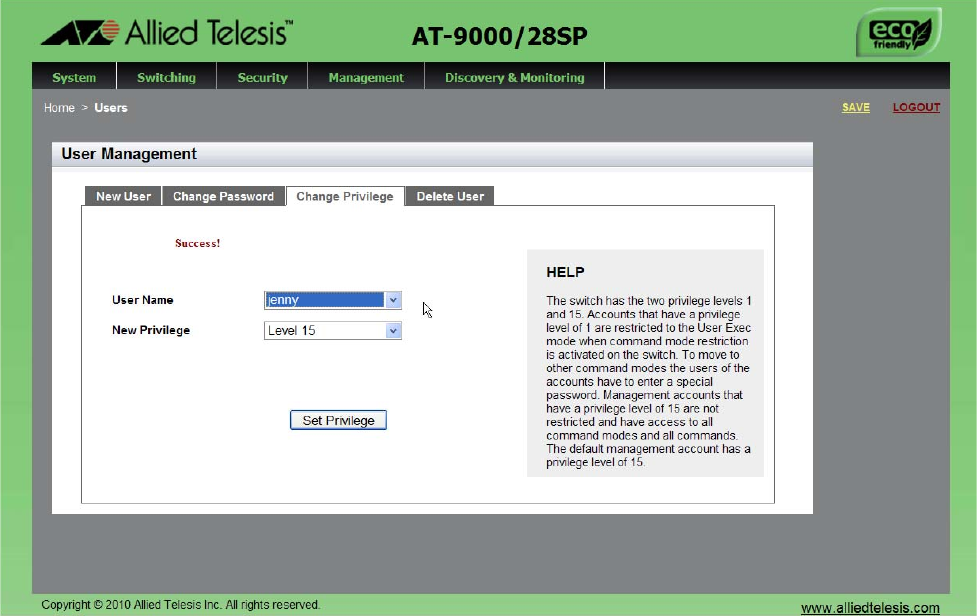

Figure 16. User Management Page with Change Privilege Tab

4. Use the pull-down menu next to the User Name field to select a user.

5. Use the pull-down menu next the New Privilege field to select a user

privilege level. Choose from the following:

 Level 15: Management accounts with a user level of 15 have

unrestricted access to the software. This is the default setting.
