AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide

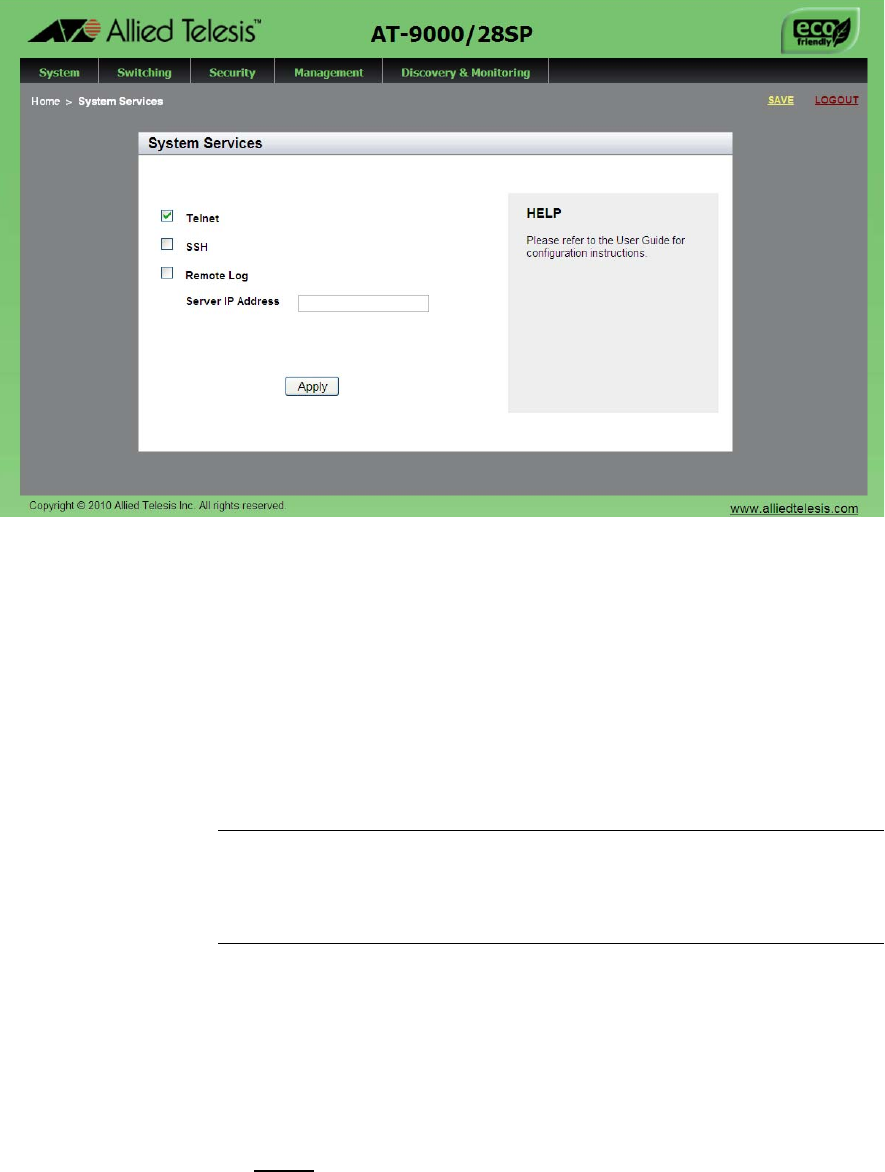

The System Services page is displayed. See Figure 10.

Figure 10. System Services Page

3. Configure the following parameters as necessary:

 Telnet— Selecting this field enables a Telnet server on the switch.

To disable a Telnet server on the switch, unclick the box next to the

Telnet field. This parameter is optional.

 SSH— Selecting this field enables an SSH server on the switch. To

disable an SSH server on the switch, unclick the box next to the

SSH filed. This parameter is optional.

Note

Both the Remote Log and Server IP Address fields are used only to

set a remote log server. For information on these fields, see “Setting

a Remote Log Server” on page 40.

 Remote Log— This field is only used for the remote log server.

 Server IP Address— This field is only used for the remote log

server.

4. Click Apply.

5. Click S

AVE to save your changes on the switch.
