Chapter 2: Starting a Management Session

Saving Your Changes

In the web interface, there are two ways to save your changes. After you

complete a procedure, click Apply as shown on the System Contact

Information page. See Figure 5. This saves the information to the running

configuration file. This information is not saved when you reboot the

switch.

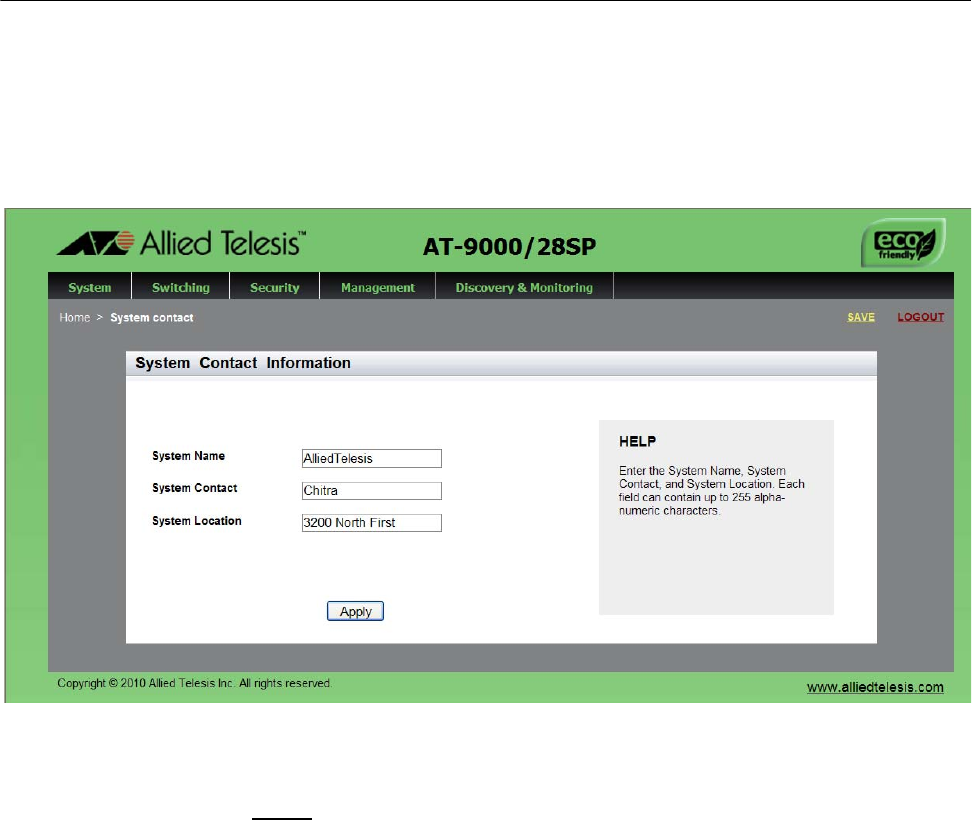

Figure 5. System Contact Information Page

To permanently save your changes in the start-up configuration file, click

SAVE

at the top of the web page.
