AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide
23
The Dashboard page is displayed. See Figure 4. The Dashboard page
is the home page of the switch.

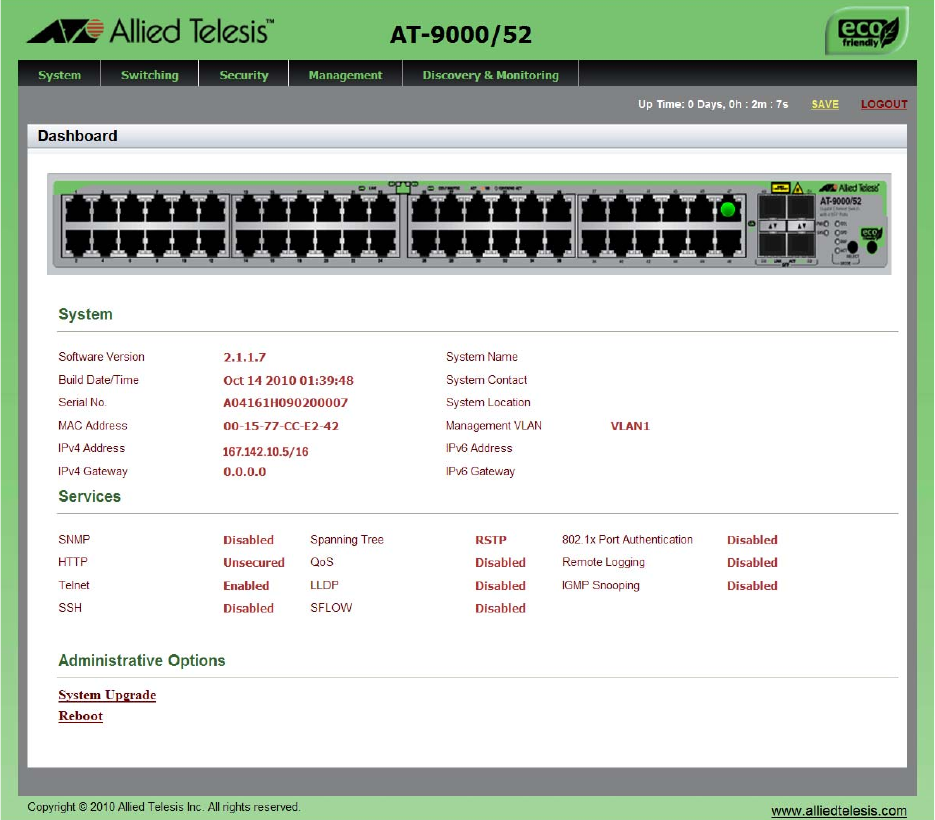

Figure 4. Dashboard Page
The following fields are displayed:
Up Time— Indicates the length of time since the switch was last
reset or power cycled in days, hours, minutes and seconds. This
field is located in the upper right-hand corner of the page.
The System section displays the following information:
Software Version— Lists the software version number of the
AlliedWare Plus software.
Build Date/Time— Lists the month, date, year and time (in the
hour:minute:second format) the software version was built.
Serial No.— Lists the unique serial number of the switch.
