AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide

225

Displaying LLDP Statistics

To display LLDP Neighbor information, do the following:

1. Select the Discovery & Monitoring tab.

The Discovery & Monitoring tab is displayed. See Figure 68 on page

201.

2. From the Discovery & Monitoring tab, select LLDP

From the LLDP tab, select Statistics.

The LLDP Statistics page is displayed with the Port Statistics tab

selected automatically. See Figure 87.

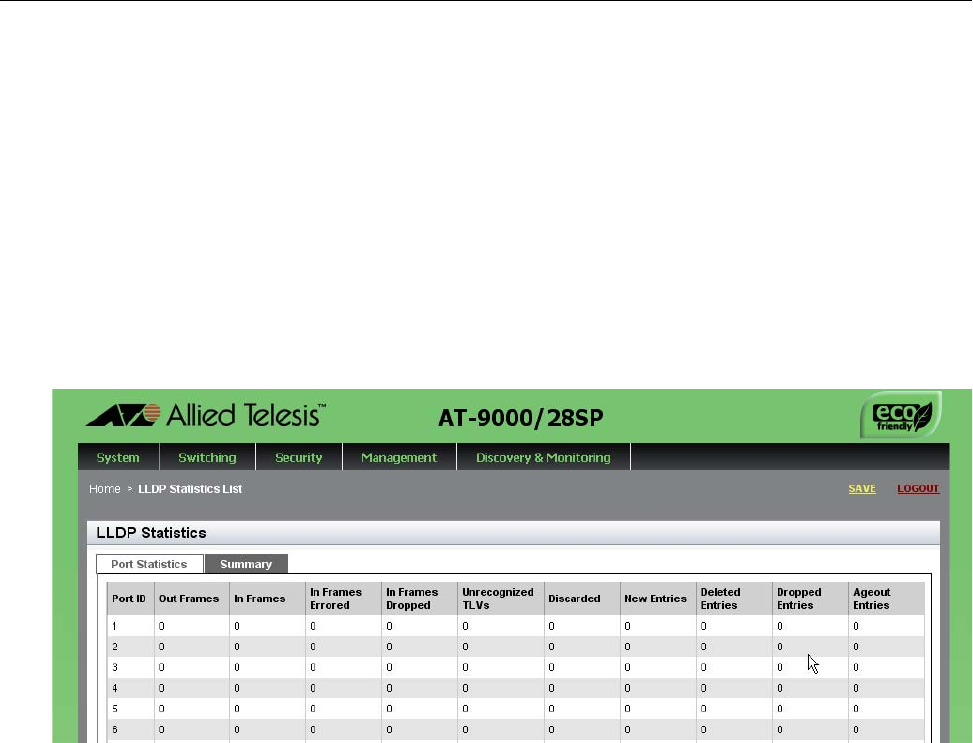

Figure 87. LLDP Statistics Page with Port Statistics Tab

The following fields are displayed:

 Port ID— Indicates the port number.

 Out Frames— Lists the number of LLDPDU frames transmitted.

 In Frames— Lists the number of LLDPDU frames received.

 In Frames Errored— Lists the number of invalid LLDPDU frames

received.

 In Frames Dropped— Lists the number of LLDPDU frames

received and discarded.

 Unrecognized TLVs— Lists the number of LLDP TLVs received

that were unrecognized, but the TLV types were in the range of

reserved TLV types.

 Discarded— Indicates the number of discarded TLVs.
